Fig. 4: Agreement with 16S rRNA structural model.
From: Improving microbial phylogeny with citizen science within a mass-market video game

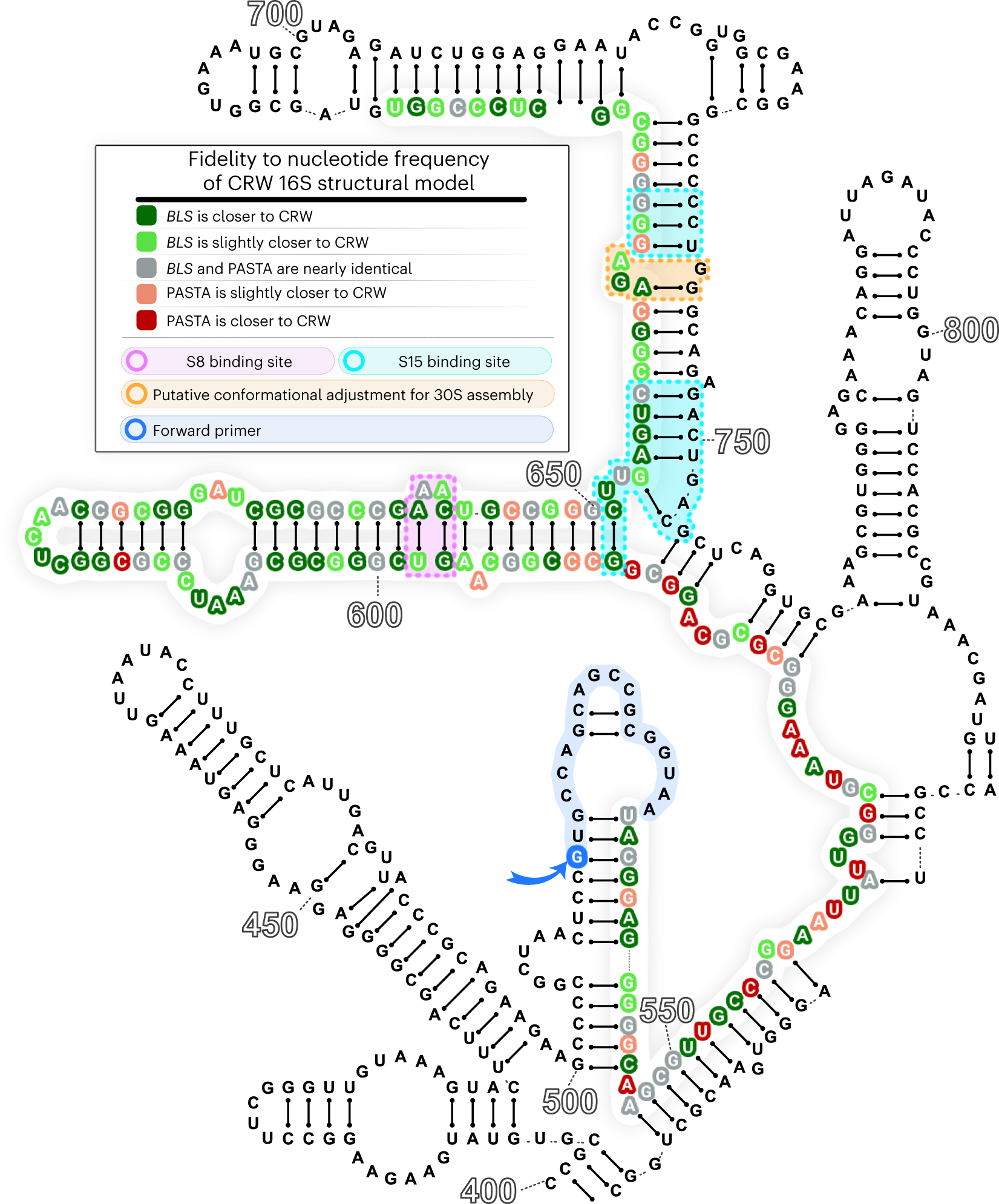

After mapping the BLS and PASTA alignments to the 16S structural model, we observed a higher conservation for BLS, especially near important functional sites. The figure shows an annotated 16S secondary structure where only the V4 region and its vicinity are shown. Colored bases form a continuous backbone. CRW, Comparative RNA Web.
