Extended Data Fig. 9: Effect of colon region on inferred cell-type specific expression distributions.

From: Tissue and cellular spatiotemporal dynamics in colon aging

Extended Data Fig. 9: Effect of colon region on inferred cell-type specific expression distributions.The alternative text for this image may have been generated using AI.

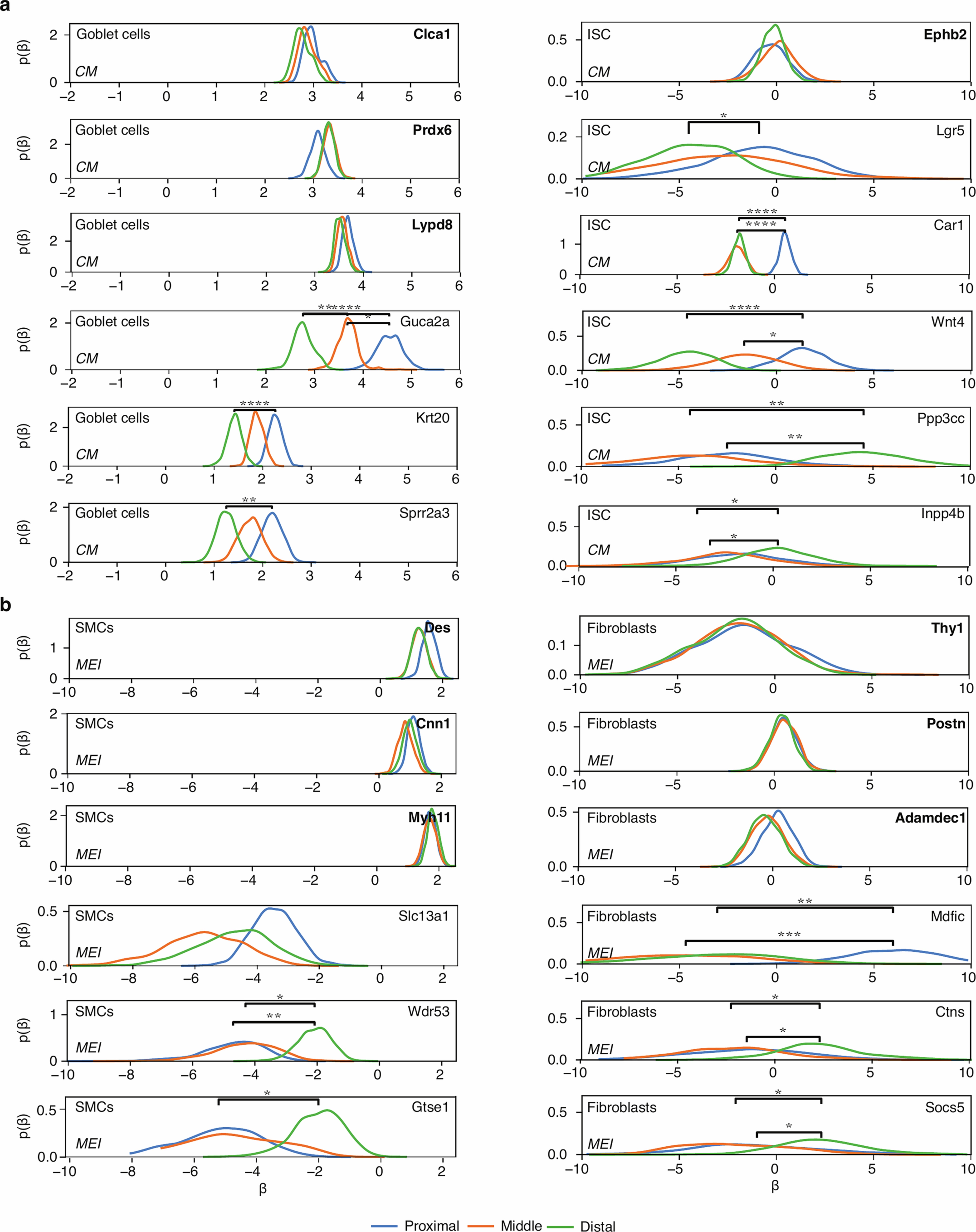

Posterior distribution of characteristic expression rate (β; x-axis) of individual genes (labeled on top right) in each of the three regions (color) in goblet cells (left) and ISCs (right) in CM (a), and in SMCs (left) and fibroblasts (right) in MEI (b). Bold: Canonical markers. Brackets: significant differential expression (*: BF > 2; **: BF > 10; ***: BF > 30; ****: BF > 100).
