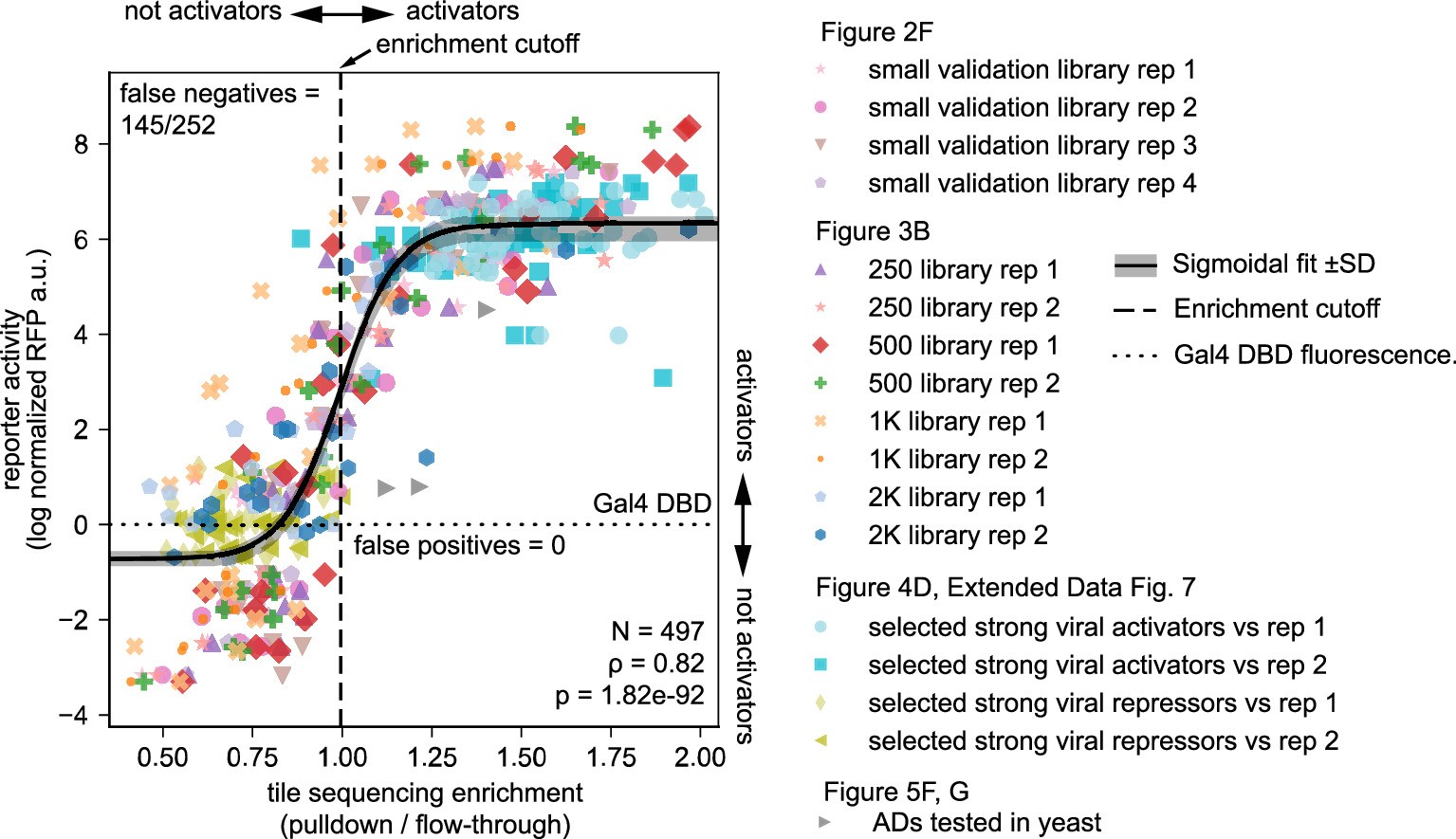

Extended Data Fig. 10: ENTRAP-seq correlates well with fluorescence plate reader measurements.
From: Multiplexed profiling of transcriptional regulators in plant cells
Scatter plot showing all presented cross-validation experiments combined. Tile transcriptional activity based on individual infiltrations followed by fluorescence plate reader assays (y-axis) is compared against tile activity based on ENTRAP-seq experiments (enrichment, x-axis). Legend indicates where the data was originally presented in the text. Refer to the original figure for information on biological replicates.
