Fig. 2: KATMAP robustly infers splicing activity.
From: KATMAP infers splicing factor activity and regulatory targets from knockdown data

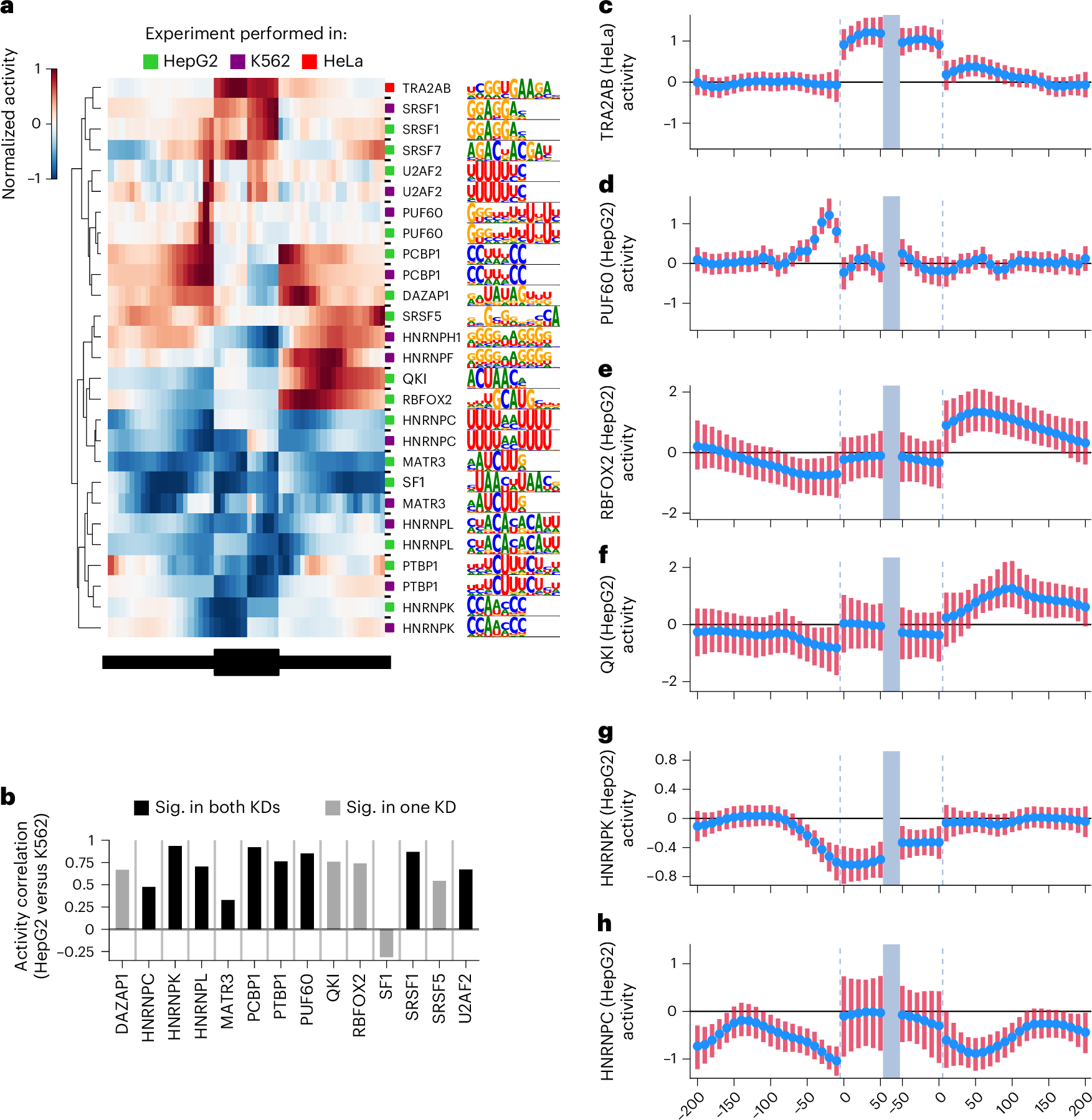

a, Significant activity maps and their motifs organized by hierarchical clustering. For ease of comparison, activity is normalized relative to the maximum absolute activity in each map. If the binding model included multiple motifs, only the top motif is shown. b, The correlation between activity maps for the same RBP inferred from different knockdowns. KD, knockdown. c–h, Activity maps for TRA2A/B (c), PUF60 (d), RBFOX2 (e), QKI (f), HNRNPK (g) and HNRNPC (h). The blue dots indicate the posterior mean and the lines are 94% CIs (n = 1,682, 1,420, 1,024, 1,106, 1,047 and 1,122 posterior samples, respectively).
