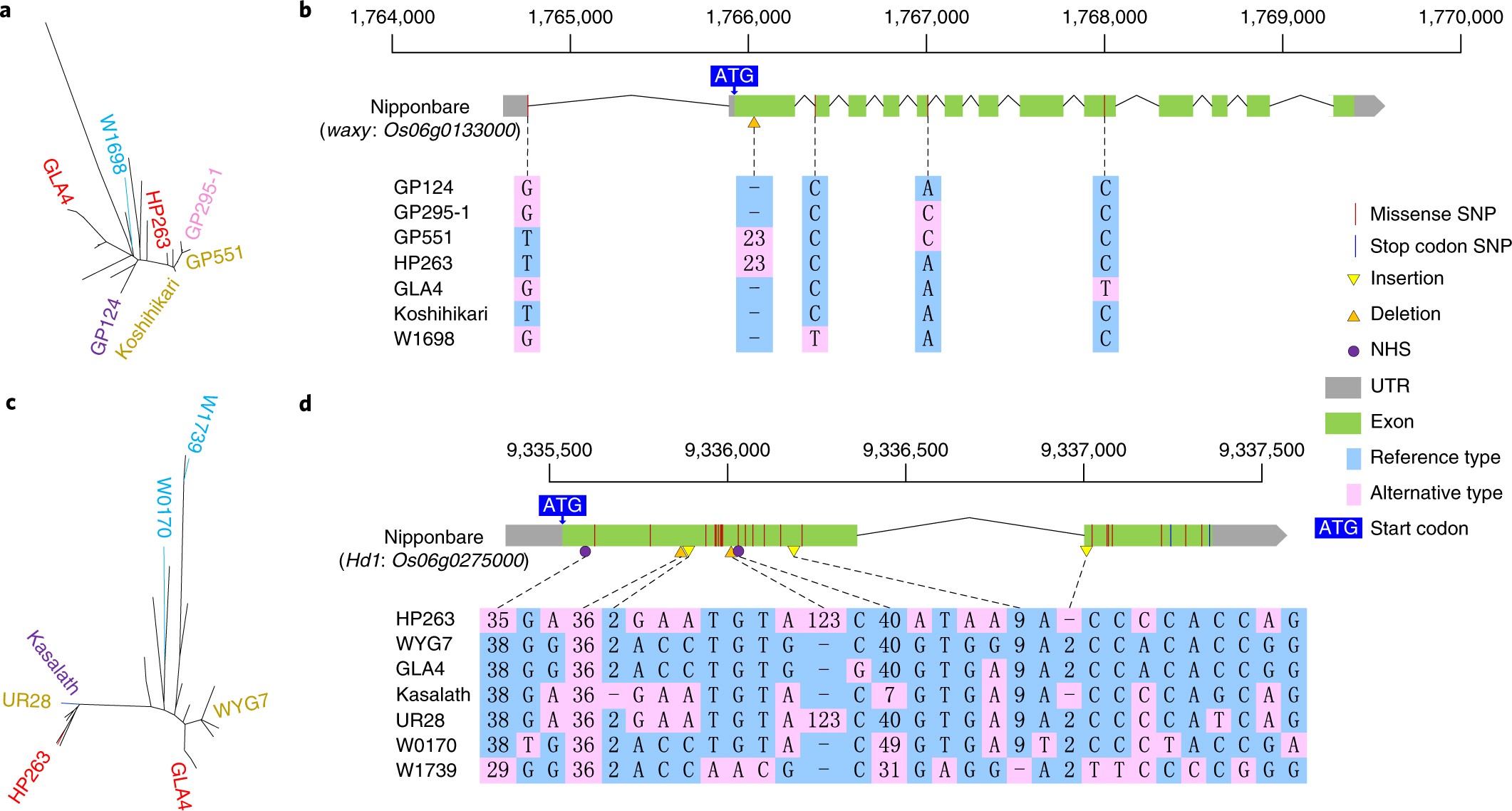

Fig. 3: Multiple alleles in waxy and Hd1.
From: Pan-genome analysis highlights the extent of genomic variation in cultivated and wild rice
a, Neighbor-joining tree of 66 accessions using genetic variants in waxy. Seven diverse accessions representing different haplotypes were selected from the tree and are color-coded according to rice group. b, Allelic information of sequence variants in waxy for the seven accessions. c, Neighbor-joining tree using genetic variants in Hd1. d, Allelic information of sequence variants in Hd1 for the seven accessions selected in c.
