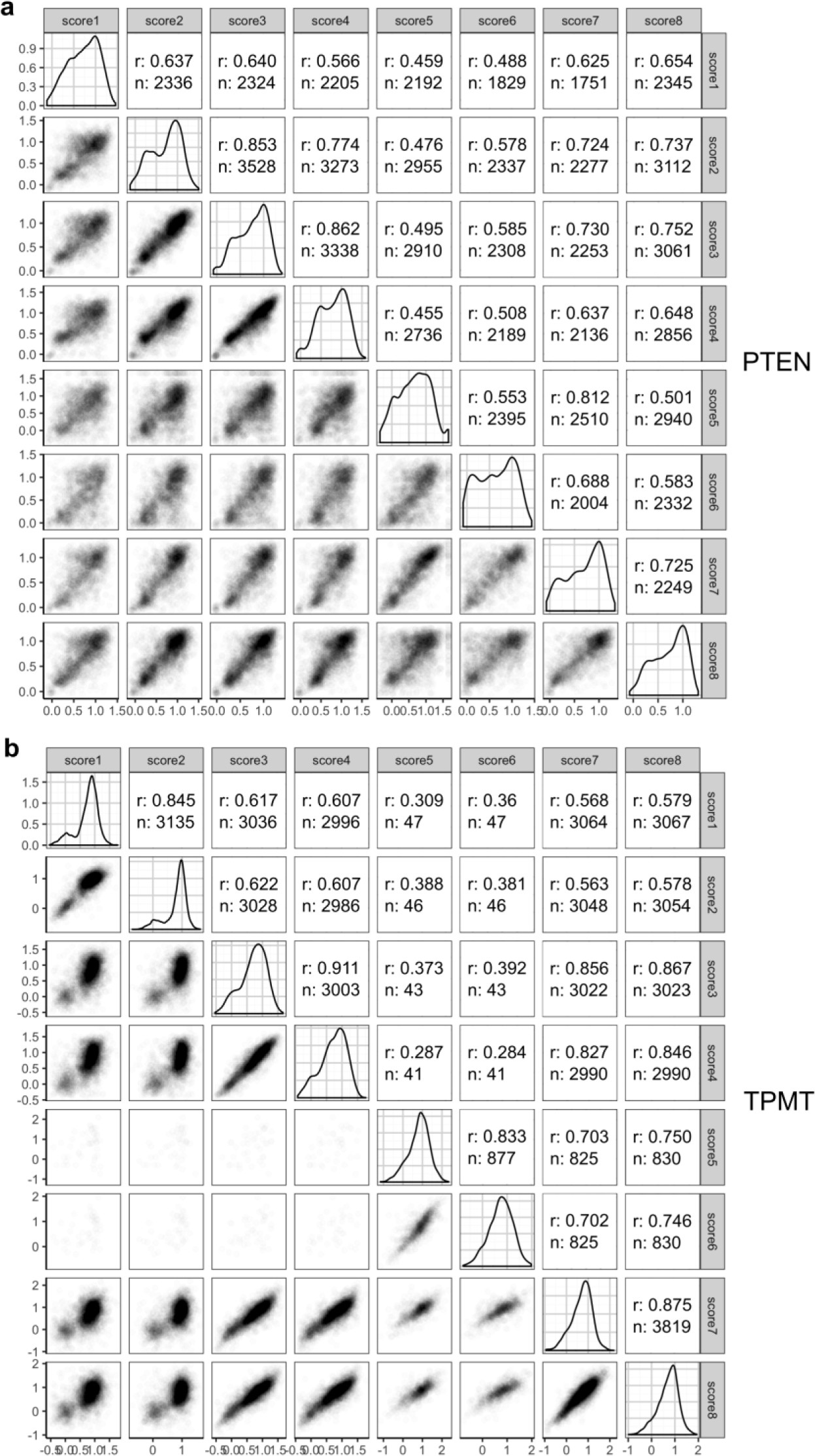

Supplementary Figure 2: Correlations between PTEN and TPMT VAMP-seq replicates.
From: Multiplex assessment of protein variant abundance by massively parallel sequencing
a, b, Pairwise VAMP-seq abundance score correlations between replicate sorting experiments for PTEN (a) and TPMT (b). n values are the number of variants scored in both experiments. Replicates 5 and 6 for TPMT contained a subset of mutagenized positions different from those mutagenized in replicates 1 through 4, with both subsets mixed together for Replicates 7 and 8. Pearson’s correlation coefficients are shown. Score numbers in this figure correspond to experiment numbers in Supplementary Table 1
