Supplementary Figure 4: Multivariate dependencies of fecal metabolites and the gut microbiome.
From: The fecal metabolome as a functional readout of the gut microbiome

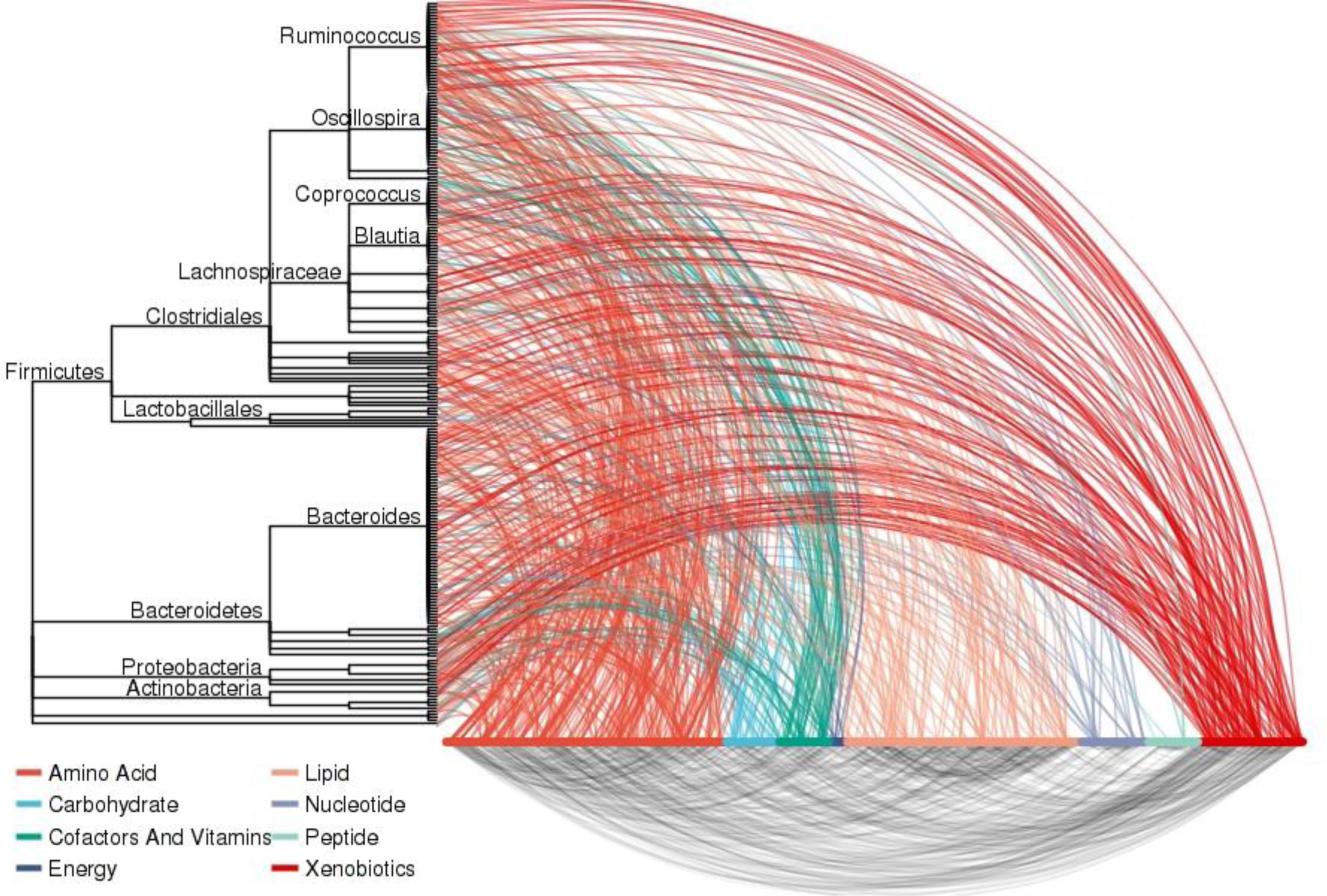

We used a Gaussian graphical model to illustrate multivariate dependencies of fecal metabolite levels and gut microbes (n = 644). Microbes on the y-axis are ordered by taxonomy, metabolites on the x-axis by pathway and hierarchical clustering of the partial correlation matrix. Connections indicate significant (FDR < 5%) shrinkage partial correlations of fecal metabolites and microbial OTUs, given all other metabolites and microbes in the model. Edges are colored by the metabolic pathway.
