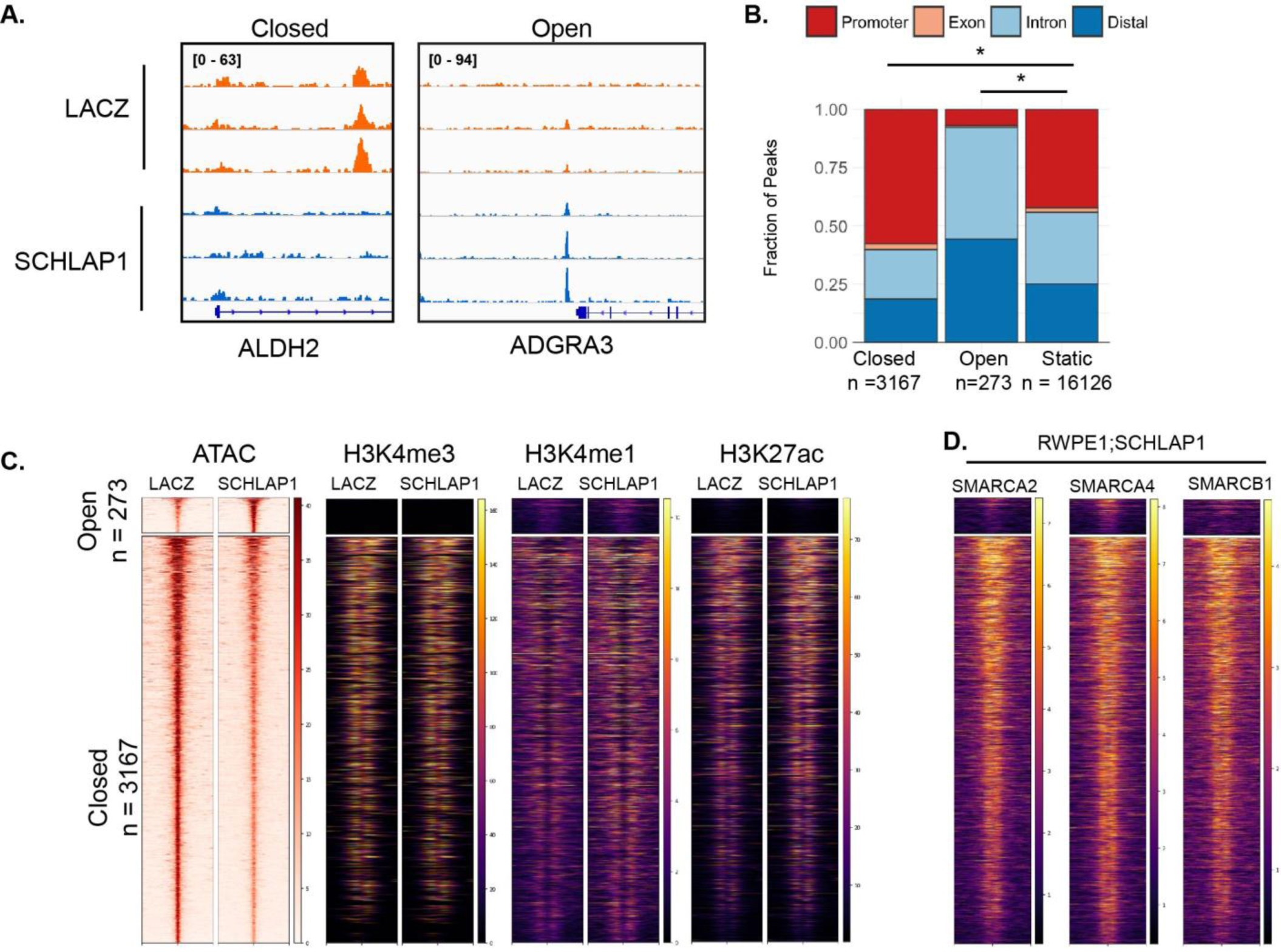

Supplementary Figure 10: SCHLAP1 induces open chromatin changes but does not alter histone modifications.
From: SWI/SNF remains localized to chromatin in the presence of SCHLAP1
a, Example loci representing open and closed chromatin regions from three independent replicate ATAC-seq experiments on two independent SCHLAP1 cell lines. b, Genomic loci associated with open, closed, and static sites. *P = 0.001, chi-squared test. c, The heatmap displays open chromatin, H3K4me3, H3K4me1, or H3K27ac signal in RWPE1;LACZ or RWPE;SCHLAP1 cells. Rows are ordered according to level of open chromatin signal. d, The heatmap shows the level of three SWI/SNF subunits present in RWPE1;SCHLAP1 cells at altered open chromatin sites. Order is the same as in c.
