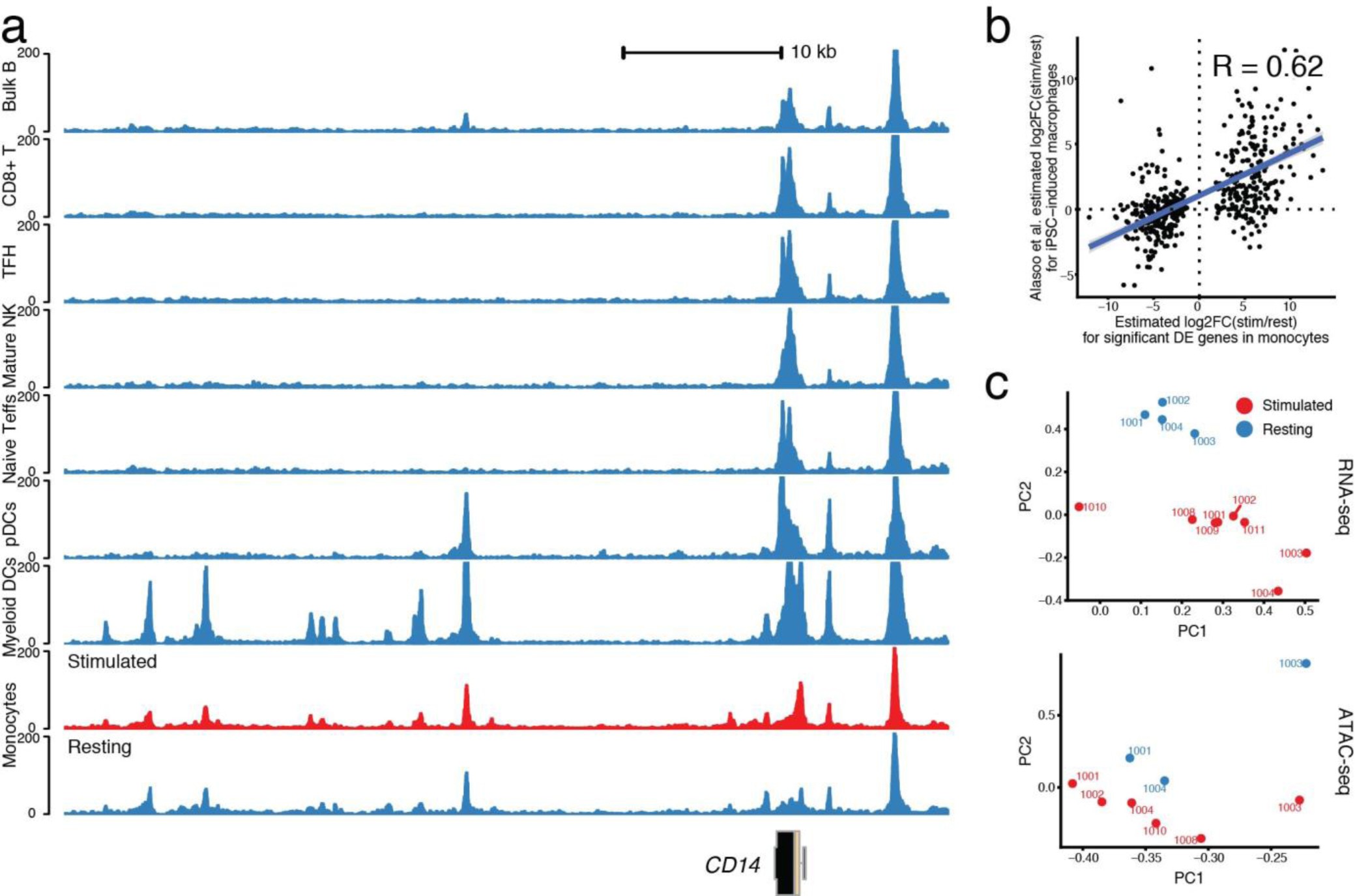

Supplementary Fig. 6: Examining monocyte stimulation.
From: Landscape of stimulation-responsive chromatin across diverse human immune cells
a, ATAC-seq profile surrounding the CD14 gene. There are accessibility peaks specific to dendritic cells and monocytes, which express CD14. b, Comparison of stimulation gene expression effects estimated from monocytes from this study and Alasoo, K. et al, Nature Genetics. 50, 424-431, 2018. We list the Pearson’s correlation between the effects estimated from each data source. c, Monocyte-specific PCA plot based on RNA-seq (top) and ATAC-seq (bottom) data. The donor of the specific sample is labeled. Sample sizes can be found in Supplementary Table 1.
