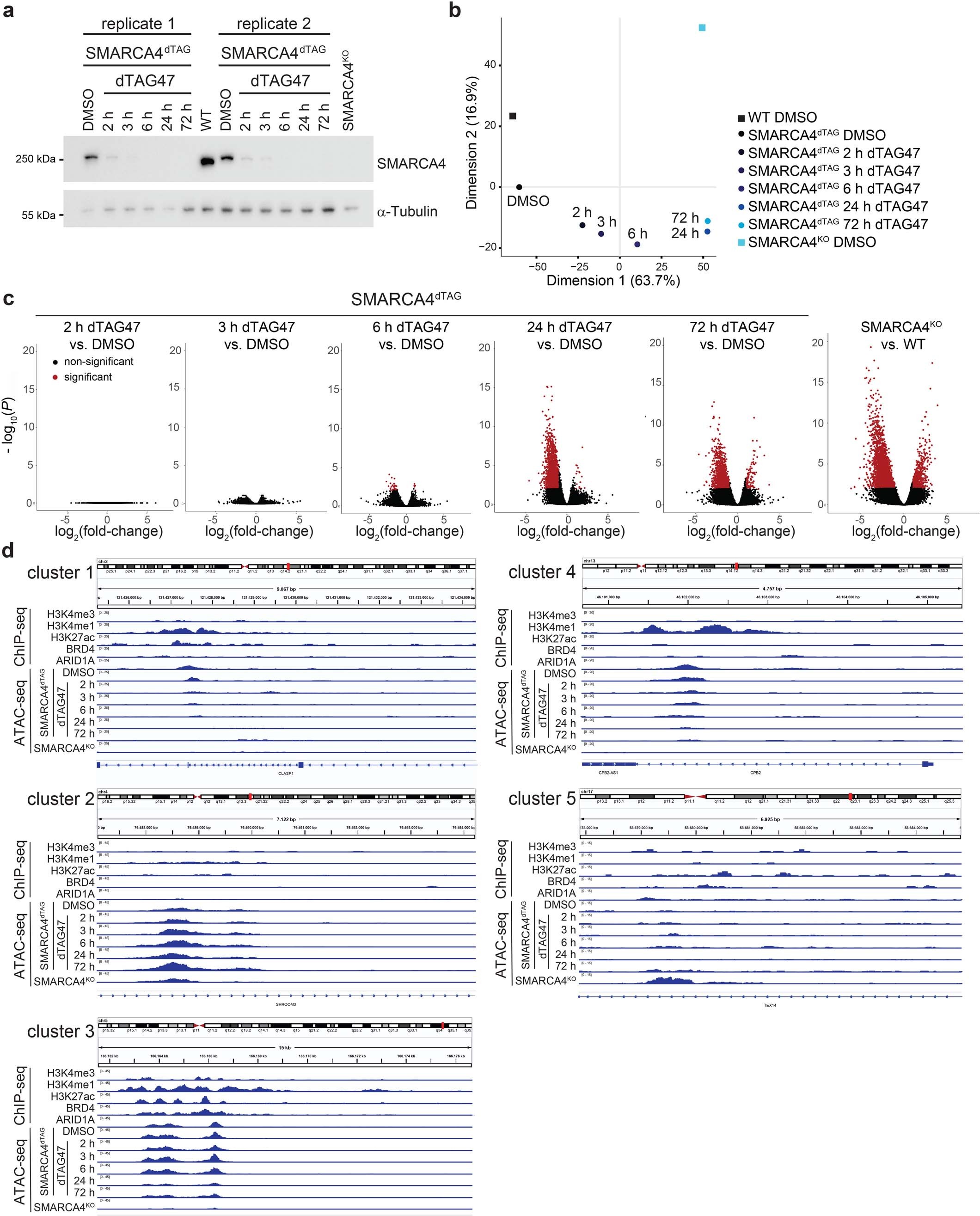

Extended Data Fig. 2: Chromatin changes after degradation of SMARCA4.
From: Acute BAF perturbation causes immediate changes in chromatin accessibility
a, Western blot analyses confirming the degradation of SMARCA4 upon dTAG47 treatment in HAP1 SMARCA4dTAG cells (cropped images). b, Principal component analysis (PCA) of the ATAC-seq time-course data. c, Volcano plots displaying the chromatin accessibility changes after SMARCA4 degradation compared to control for different treatment length. Significant changes (Padj < 0.01 and abs(log2(fold-change)) >1) are colored in red. d, Browser track examples for regions falling into the 5 different clusters.
