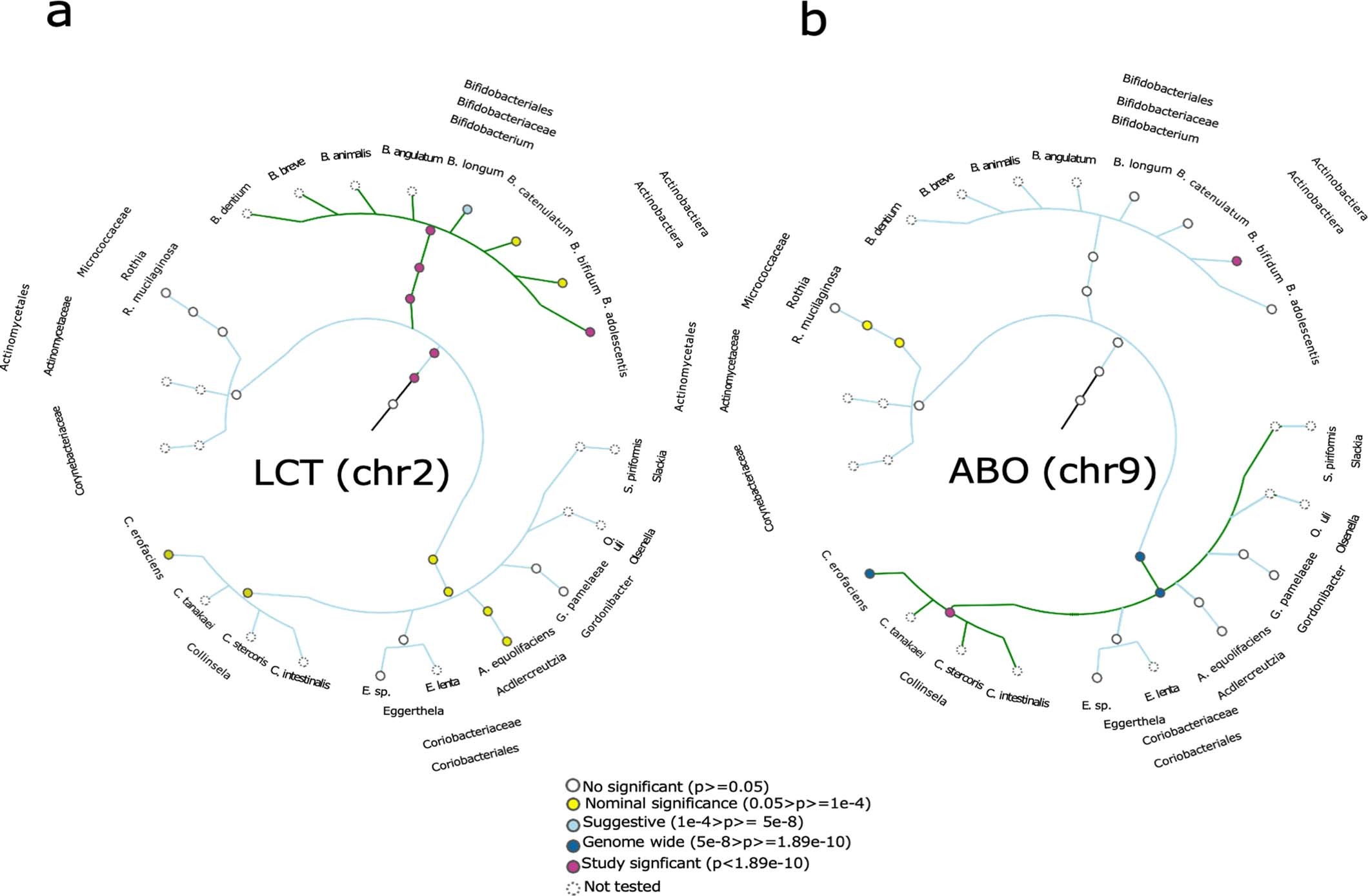

Extended Data Fig. 1: Cladogram plot tree of taxonomic relations between bacteria of the class Actinobacteria and their associations with host genetics.
From: Effect of host genetics on the gut microbiome in 7,738 participants of the Dutch Microbiome Project
Each node shows a taxonomic level (from outside to inside: phylogenetic group, phylum, class, order, family, genus and species). Note that branch lengths do not represent phylogenetic distance. Inner labels represent genetic locus. External labels represent the clade. Nodes with dotted lines indicate that the GWAS was not performed for that taxa. Node color corresponds to different levels of significance as described in the legend. a, Depicts associations detected at the MCM6/LCT locus with each taxa, using the most significant p-value observed between rs4988235 and rs182549. b, Depicts associations at the ABO locus with each taxa, using the most significant p-value observed between rs8176645 and rs550057.
