Extended Data Fig. 8: The pair-wise distances of amino acids in MHC-peptide-TCR complexes.
From: HLA autoimmune risk alleles restrict the hypervariable region of T cell receptors

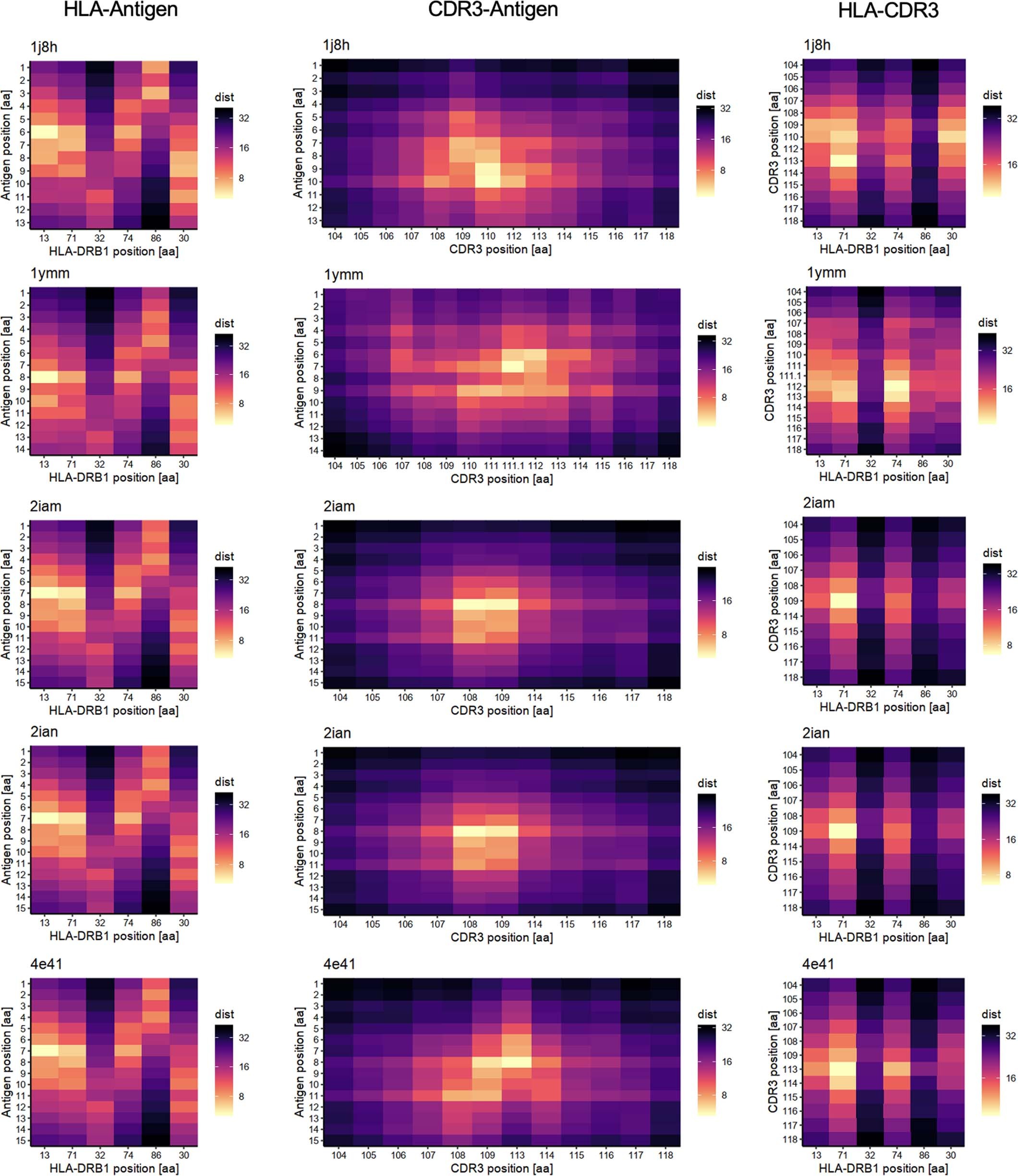

The distances (in Å) between HLA-DRB1 sites and antigen (left), CDR3 amino acids of beta chains and antigen (middle), and HLA-DRB1 sites and CDR3 amino acids of beta chains (right) are shown in heatmaps.
