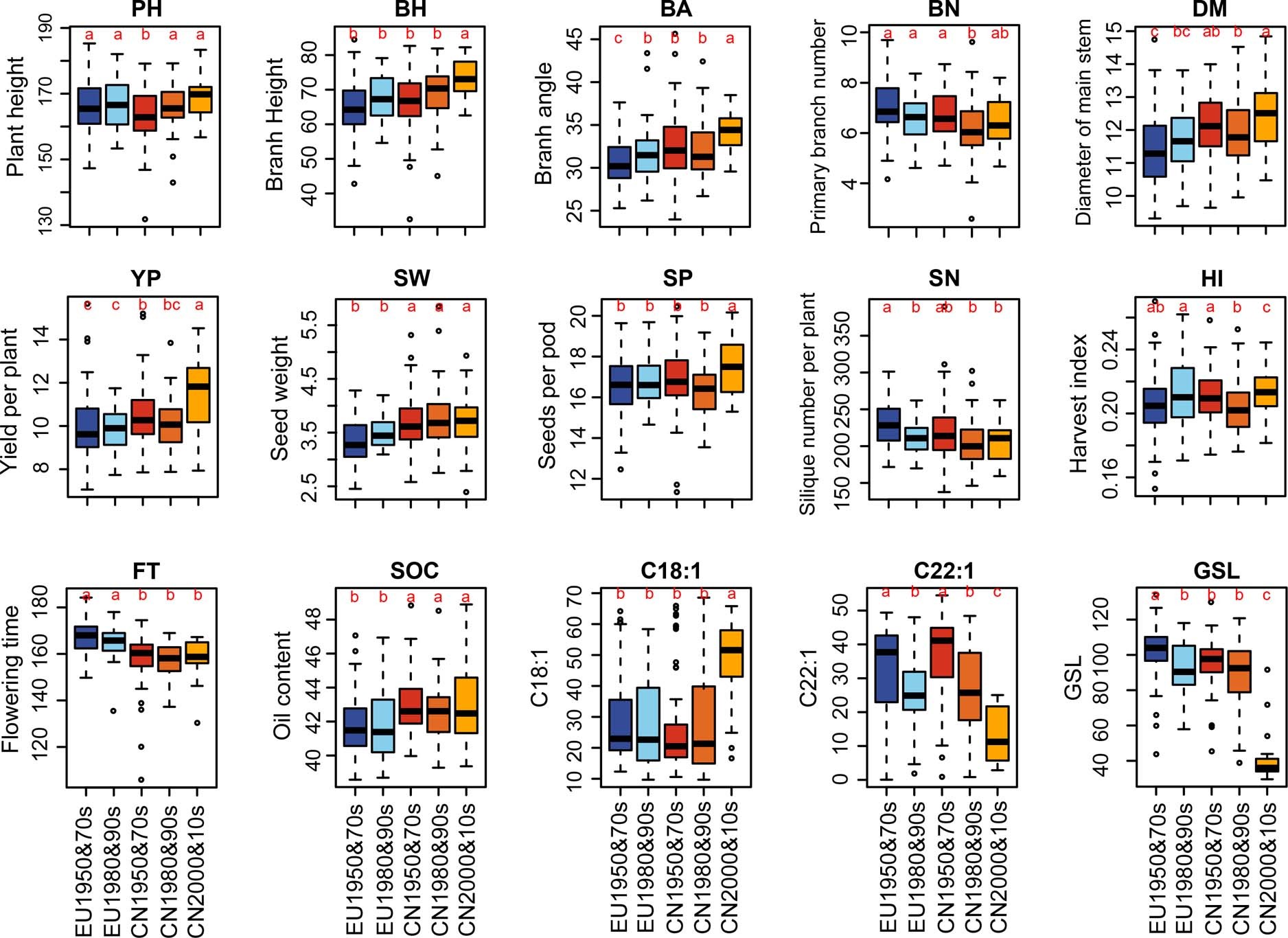

Extended Data Fig. 1: Changes in agronomic traits during rapeseed breeding in Europe and China.
From: Genomic selection and genetic architecture of agronomic traits during modern rapeseed breeding
PH, plant height; BH, branch height; BA, branch angle; BN, primary branch number; DM, diameter of main stem; YP, yield per plant; SW, 1,000-seed weight; SP, seeds per pod; SN, silique number per plant; HI, harvest index; FT, flowering time; SOC, seed oil content; GSL, glucosinolate. Different letters above the boxes indicate significant differences (P < 0.05, two-tailed t-test). The center lines indicate the median, box limits represent the upper and lower quartiles, whiskers extend to 1.5× the interquartile range, and dots represent outliers. EU, Europe; CN, China. EU1950&70 s (n = 93); EU1980&90 s (n = 35); CN1950&70 s (n = 73); CN1980&90 s (n = 67); CN00, CN2000&10 s (n = 35) (See Supplementary Fig. 6).
