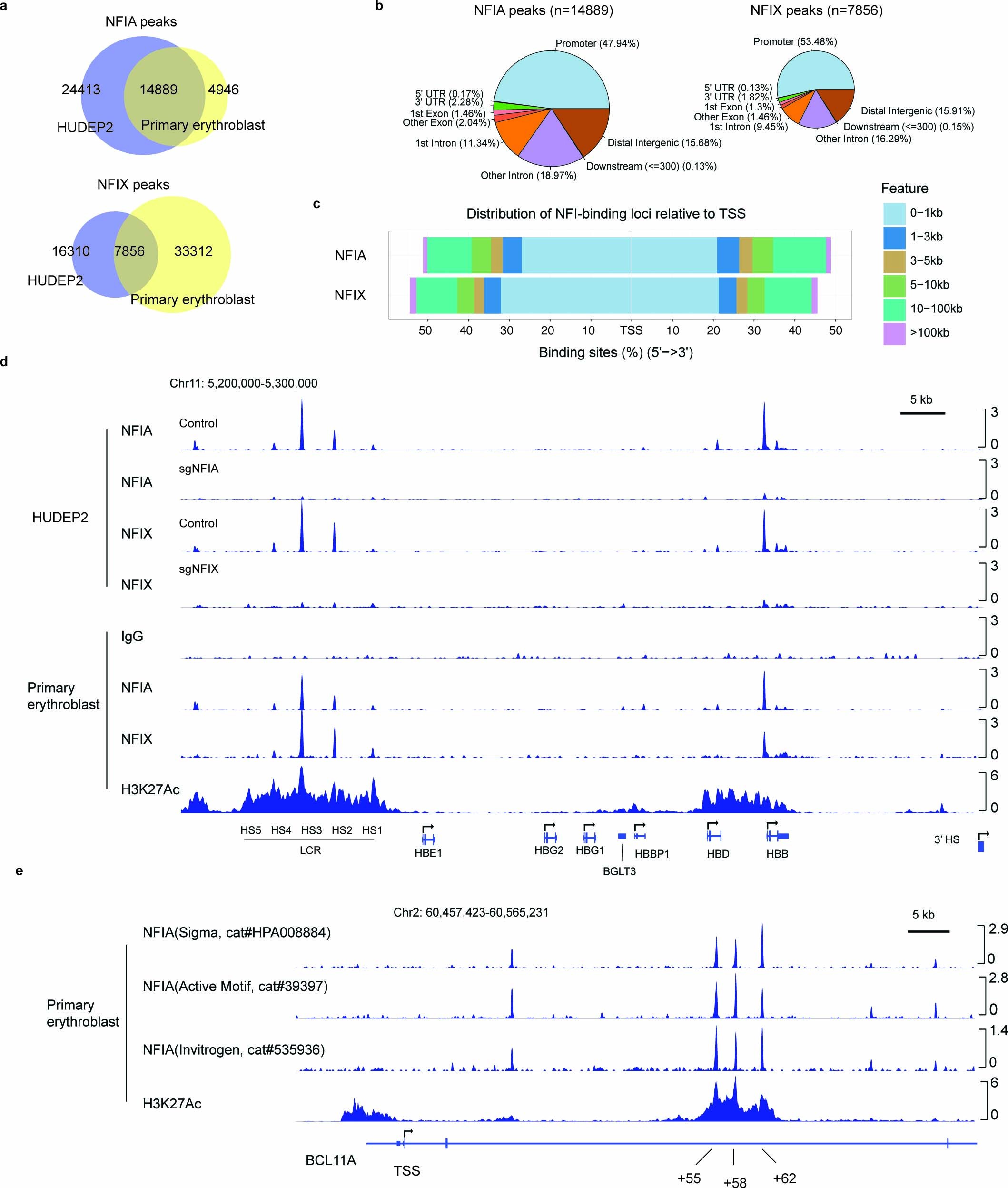

Extended Data Fig. 6: Characterization of NFIA and NFIX genomic occupancy profiles by CUT&RUN.
From: Dual function NFI factors control fetal hemoglobin silencing in adult erythroid cells
a, The statistics of NFIA and NFIX peaks identified from HUDEP2 and primary erythroblast CUT&RUN experiments. b, Genomic features of NFIA and NFIX CUT&RUN peaks. c, Distribution of NFIA and NFIX-binding loci relative to gene transcription start site. d, Genomic occupancies of NFIA and NFIX at β-globin locus in HUDEP2 and primary erythroblasts. NFIA KO (sgNFIA), NFIX KO (sgNFIX), and IgG were used as controls. e, CUT&RUN signals at the BCL11A locus with three indicated NFIA antibodies in primary cells at day 10 of differentiation.
