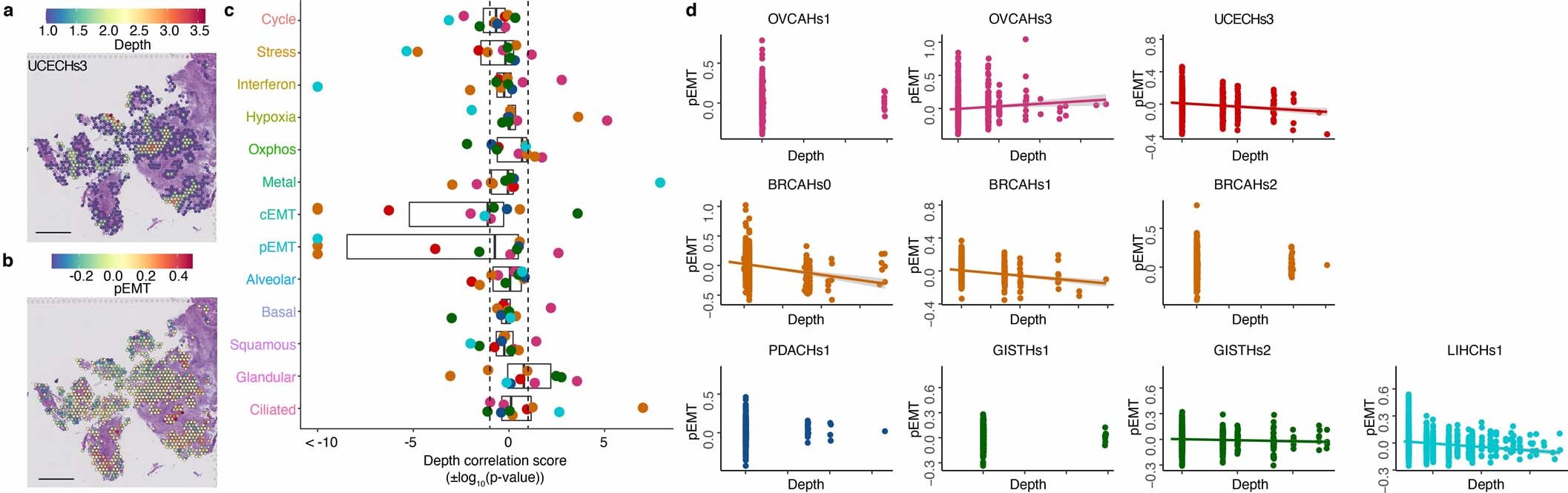

Extended Data Fig. 8: Relationship between pEMT and cancer spot depth.
a. Sample UCEC NYU3, ‘Malignant’ only spots colored by their depth: the distance to the nearest spot containing nonmalignant cells. b. Sample UCEC NYU3, ‘Malignant’ only spots colored by pEMT module score. c. Boxplots of correlation scores (±log10(p-value)) between module scores and depth of malignant spots across 10 samples, colored as in Fig. 1a. For each boxplot, the line indicates the median, the box indicates the 1st and 3rd quartile, the whiskers indicate the minimum and maximum values. Positive scores correspond to positive correlations. Dashed lines indicate p-value=0.05. Plots of the relationship between the pEMT module score and depth in the 10 ST samples, colored as in Fig. 1a. Lines are drawn for correlations with p-value<0.05.
