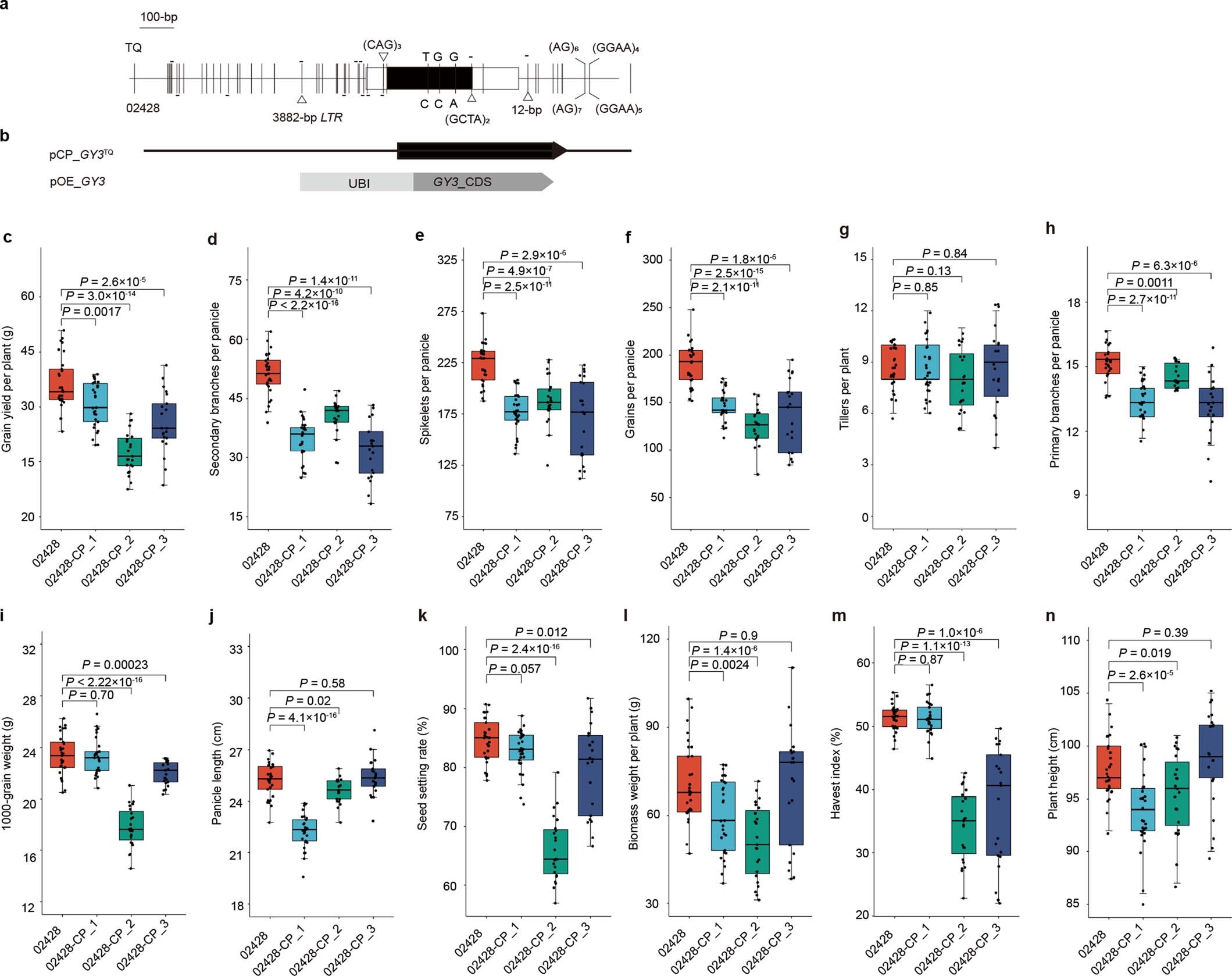

Extended Data Fig. 3: Natural variations and complementation test of GY3.
From: Suppressing a phosphohydrolase of cytokinin nucleotide enhances grain yield in rice
a, Gene structure and sequence variations between 02428 and TQ alleles. b, Schematic representation of the complementing (CP) and over-expressing (OE) constructs of GY3. c–n, Comparisons of yield-related traits including grain yield per plant (c), secondary branches per panicle (d), spikelets per panicle (e), grains per panicle (f), tillers per plant (g), primary branches per panicle (h),1000-grains weight (i), panicle length (j), seed setting rate (k), biomass per plant (l), harvest index (m) and plant height (n) between 02428 and 02428-CP lines. For box plots in c–n, the box limits indicate the 25th and 75th percentiles, whiskers further extend by ±1.5 times the interquartile range from the limits of each box, and the center line indicates the median, individual data points are plotted (n = 29, 29, 23 and 21 for 02428, 02428-CP_1, 02428-CP_2 and 02428-CP_3, respectively). P values were calculated by two-sided paired Student’s t-test.
