Fig. 5: MN-predict, a web-based platform for quantification of future risk of developing myeloid neoplasms.

From: Multiparameter prediction of myeloid neoplasia risk

Fig. 5

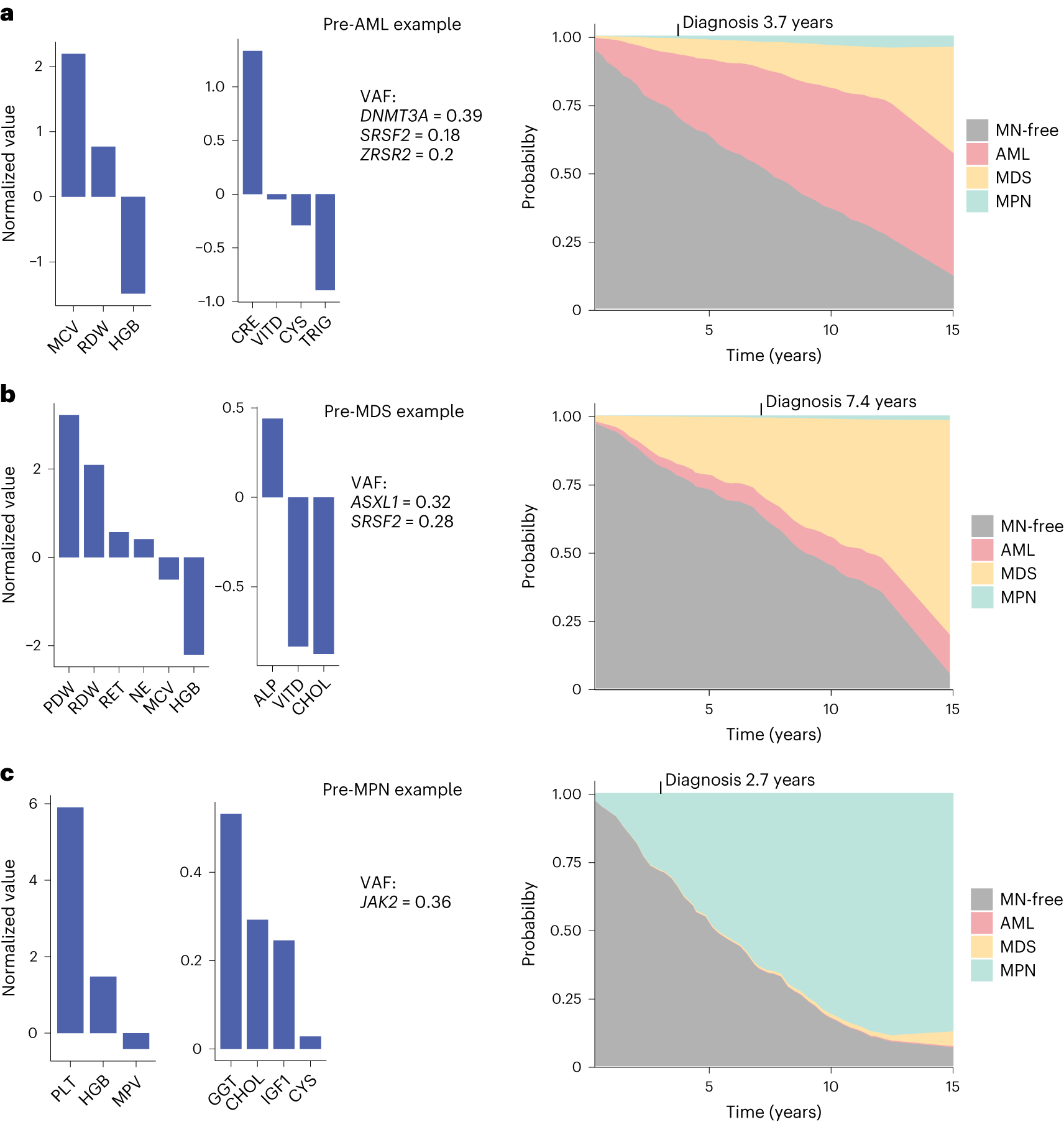

a–c, Examples of predictions of MN risk by MN-predict in three individuals who went on to develop AML after 3.7 years (a), MDS after 7.4 years (b) and MPN after 2.7 years (c), respectively. The predictions were derived using three separate Cox regression models for predicting AML, MDS and MPN. In each panel, the values of input parameters for the model relevant to the downstream diagnosis are shown on the left (gene mutations, highest VAF and blood tests results depicted as normalized values relative to the median on a log scale) and the actual predictions on the right. The probability of different outcomes is represented by the vertical height of the corresponding color at any given time.
