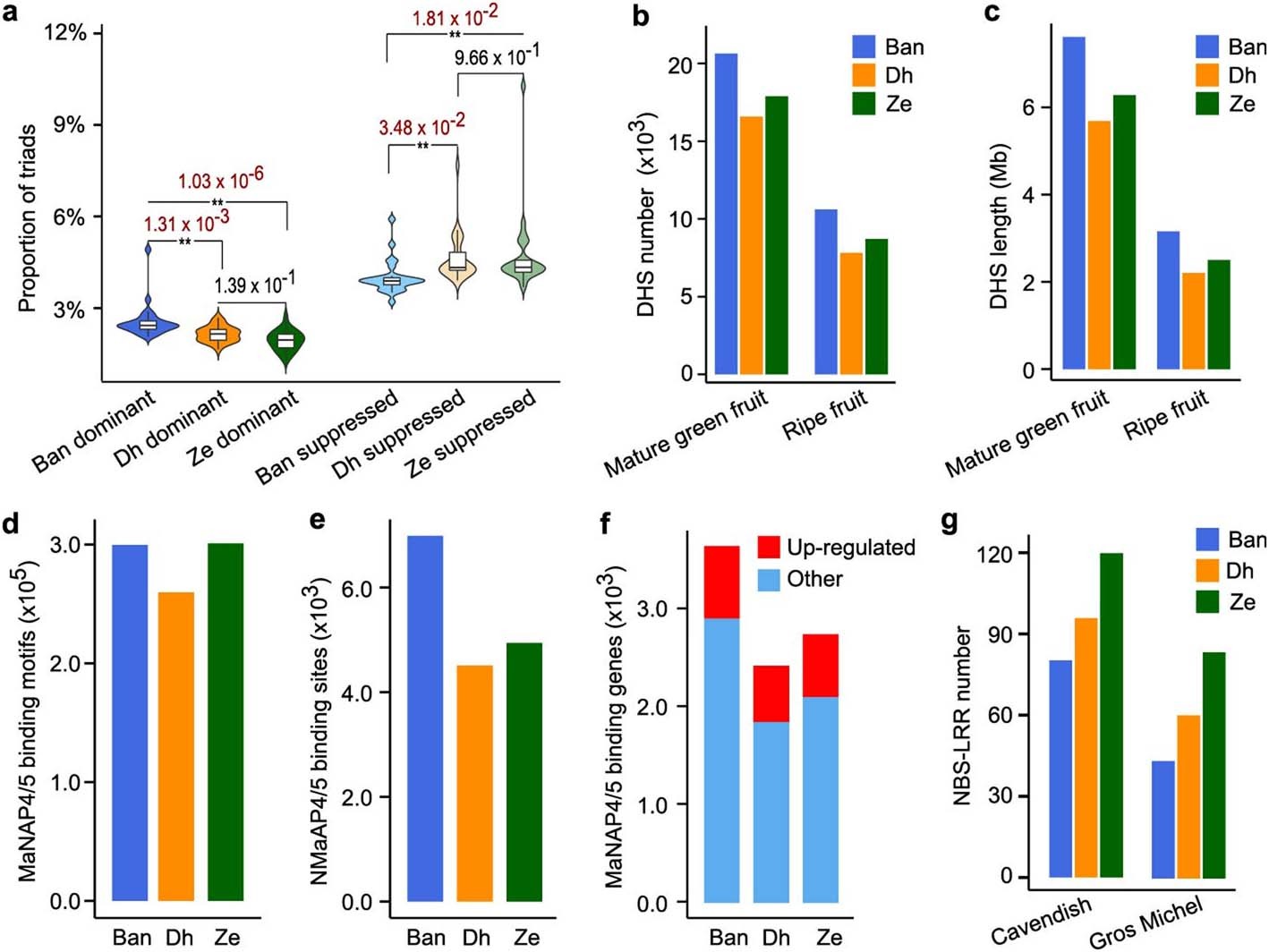

Extended Data Fig. 7: Sub-genome dominance in the triploid banana genome.
From: Origin and evolution of the triploid cultivated banana genome
a, Statistical comparison of categories of syntenic triad homoeolog expression bias. P-values were determined by one-way ANOVA with Tukey’s HSD test (n = 26 tissues of each category) within the suppression and dominance categories, and P-values less than 0.05 was highlighted in red. For boxplot in this study, the middle line represents the median, the lower and upper edges of the box represent the first and third quartiles, the end of the lower whisker represents the smallest value at most 1.5× inter-quartile range from the lower edge of the box, the end of the upper whisker represents the largest value at most 1.5× inter-quartile range from the upper edge of the box. b and c, Total number (b) and length (c) of DNase-hypersensitive sites (DHSs) detected in mature green and ripe fruits. d-f, Sub-genome distribution of MaNAP4/5 binding motifs (d), sites (e) and genes (f). g, Distribution of NBS-LRR resistance genes in the sub-genomes.
