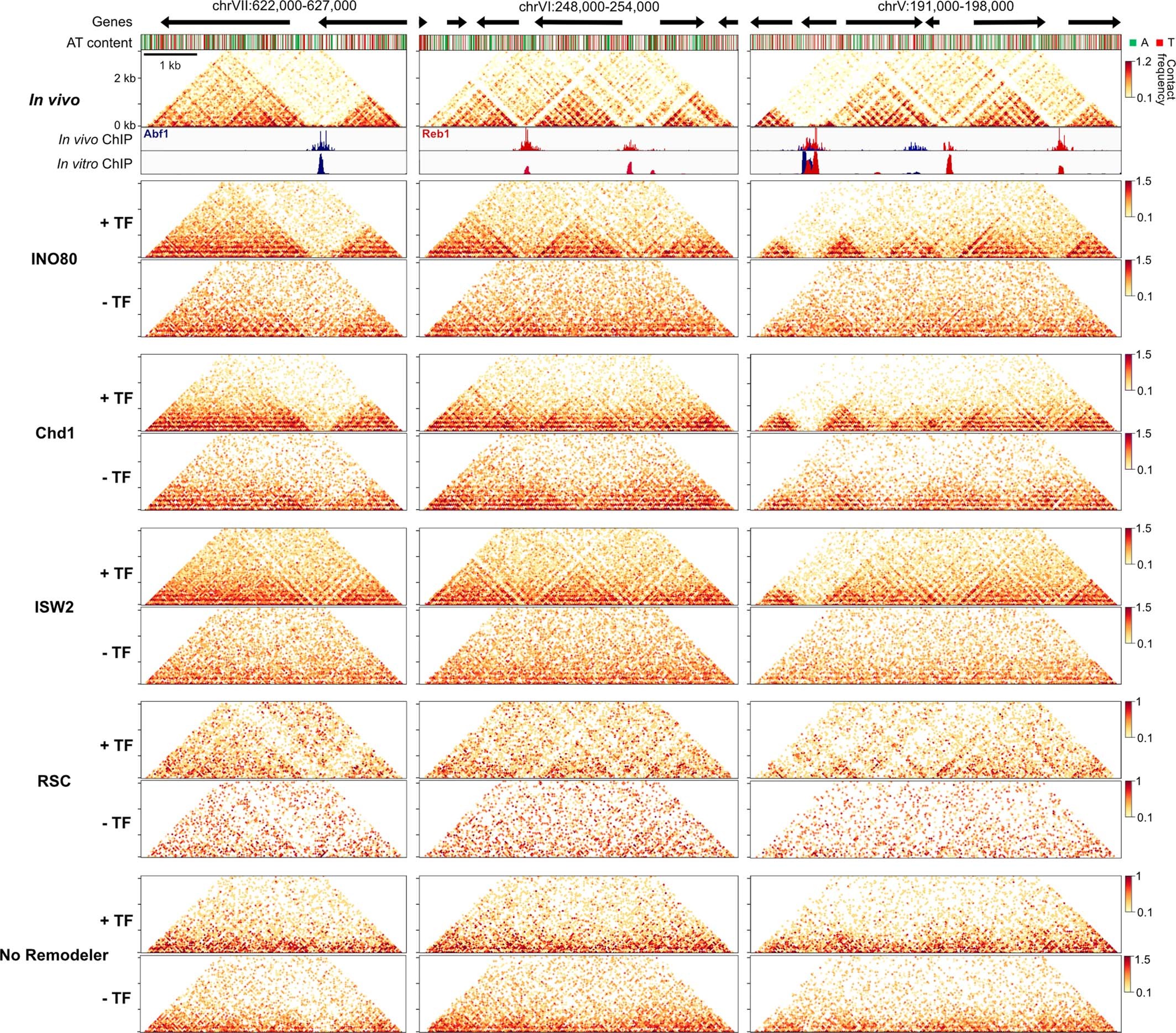

Extended Data Fig. 6: Comparison of in vitro chromatin structure in presence and absence of chromatin remodelers and transcription factors.

Contact matrices displaying in vivo¹³ and in vitro Micro-C data for three genomic regions. Gene and sequence composition annotation are shown at the top (A = adenine; T = thymine). In vivo¹⁹ and in vitro ChIP-seq data for Abf1 (blue) and Reb1 (red) are shown below the in vivo data. Chromatin used for in vitro Micro-C was incubated with or without chromatin remodelers and the TFs Abf1 and Reb1 as indicated. Micro-C data are plotted as log₁₀ interaction counts at 40 bp resolution.
