Extended Data Fig. 7: Splicing analysis of 5′SS and 3′SS events in patients with RNU5B-1 variants.

From: Dominant variants in major spliceosome U4 and U5 small nuclear RNA genes cause neurodevelopmental disorders through splicing disruption

Extended Data Fig. 7: Splicing analysis of 5′SS and 3′SS events in patients with RNU5B-1 variants.

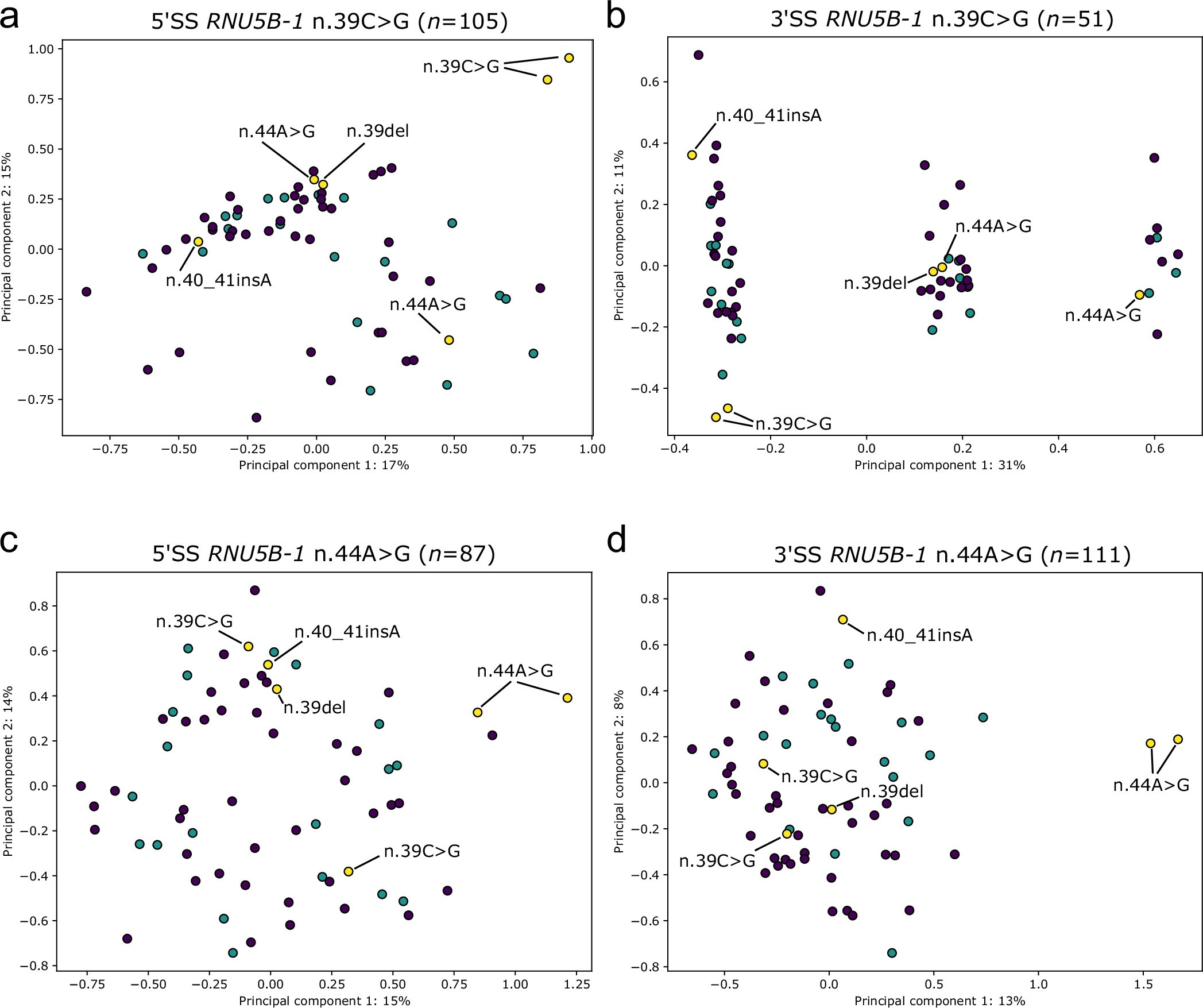

a–d, Significant alternative 5′SS and 3′SS events (FDR < 0.1) were called for variants n.39C>G (n = 2) and n.44A>G (n = 2) independently against 21 controls using rMATS. PCAs were performed using PSI values of these calls with additional 20 controls, 19 RNU4-2 and other U5 variants, including n.39del and n.40_41insA in RNU5A-1. PCAs were performed using PSI values of 105 5′SS events for n.39C>G (a), 51 3′SS events for n.39C>G (b), 87 5′SS events for n.44A>G (c), and 111 3′SS events for n.44A>G (d). Purple, controls; teal, RNU4-2; yellow, U5 variants.
