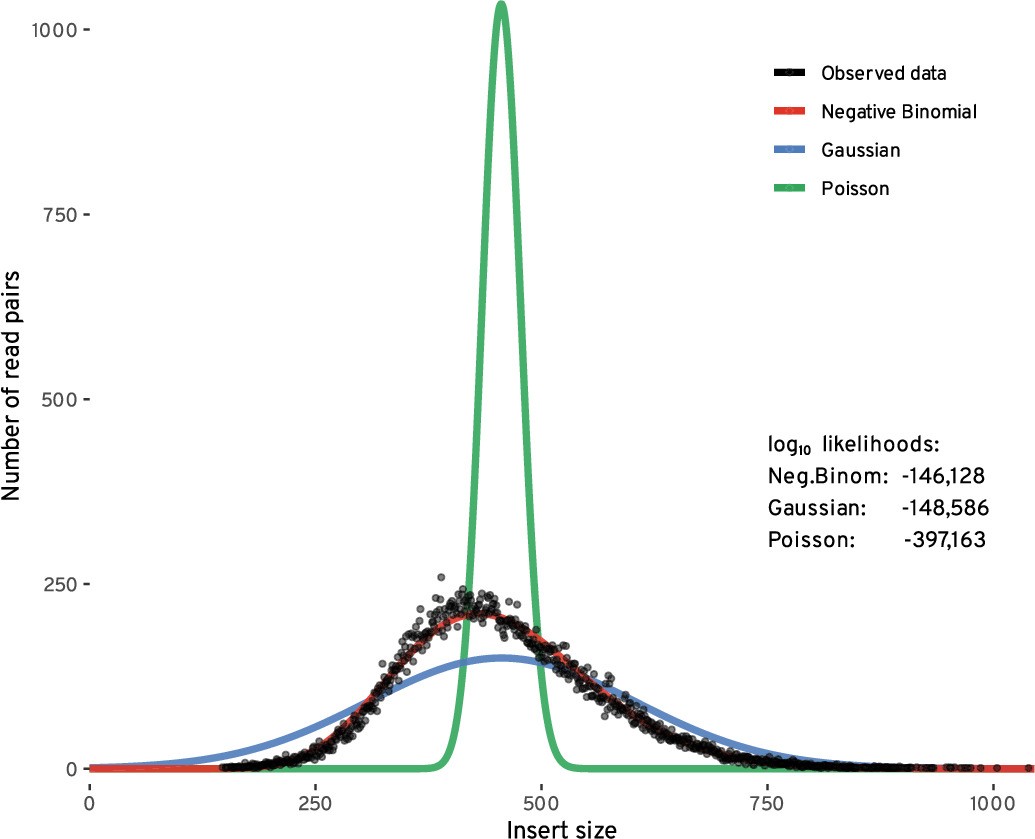

Extended Data Fig. 9: Insert size distribution.
From: Locityper enables targeted genotyping of complex polymorphic genes
Black dots show observed insert sizes for 55 thousands read pairs from the HG00621 Illumina WGS dataset. Colored lines show three fitted distributions: Negative Binomial (red), Gaussian (blue) and Poisson (green). Fit \({\log }_{10}\) likelihoods for all distributions are shown on the right of the figure.
