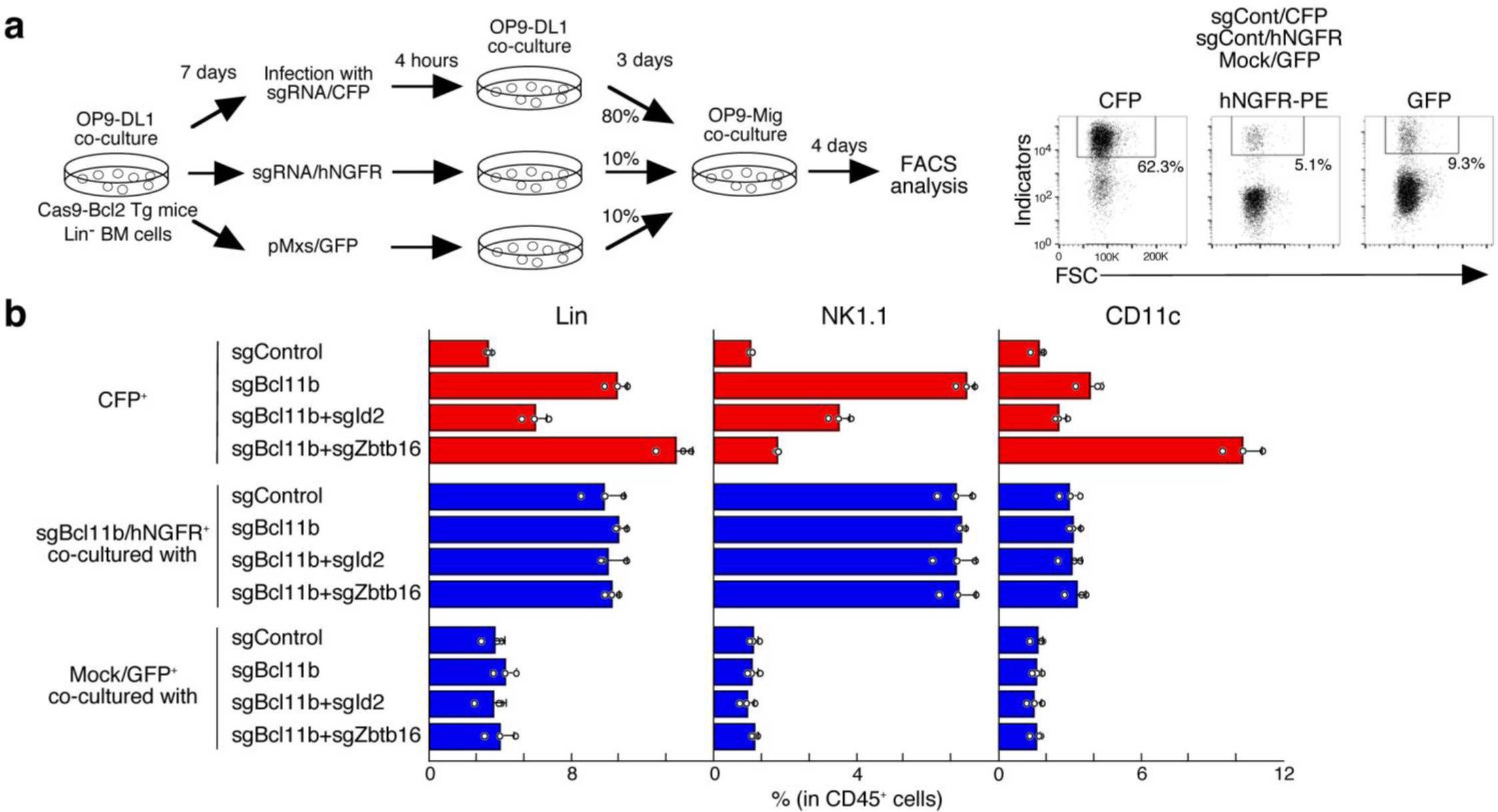

Supplementary Figure 12: Effects of Bcl11b target genes Id2 and Zbtb16 on lineage diversion are cell-autonomous.
From: Bcl11b sets pro-T cell fate by site-specific cofactor recruitment and by repressing Id2 and Zbtb16
(a), Experimental scheme is shown. BM-derived precursors were cultured on OP9-DL1 for 7 days, then they were infected with the indicated sgRNA in a CFP vector, the indicated sgRNA in an hNGFR vector, or with pMxs-GFP empty vector, separately. Three days after infection, they were re-combined, transferred to OP9-Mig and cultured 4 more days (left). Representative FCS/CFP, hNGFR and GFP profiles on day 14 are shown with the percentages of cells in the rectangles (right). (b) Bar graph summarizing flow cytometric analysis in Fig. 7b. Data shown are individual values and averages of three biological replicates with mean +s.d.
