Supplementary Figure 4: Gating strategy for TAME and phenotyping of tetramer+ CD8+ T cells.

From: Human CD8+ T cell cross-reactivity across influenza A, B and C viruses

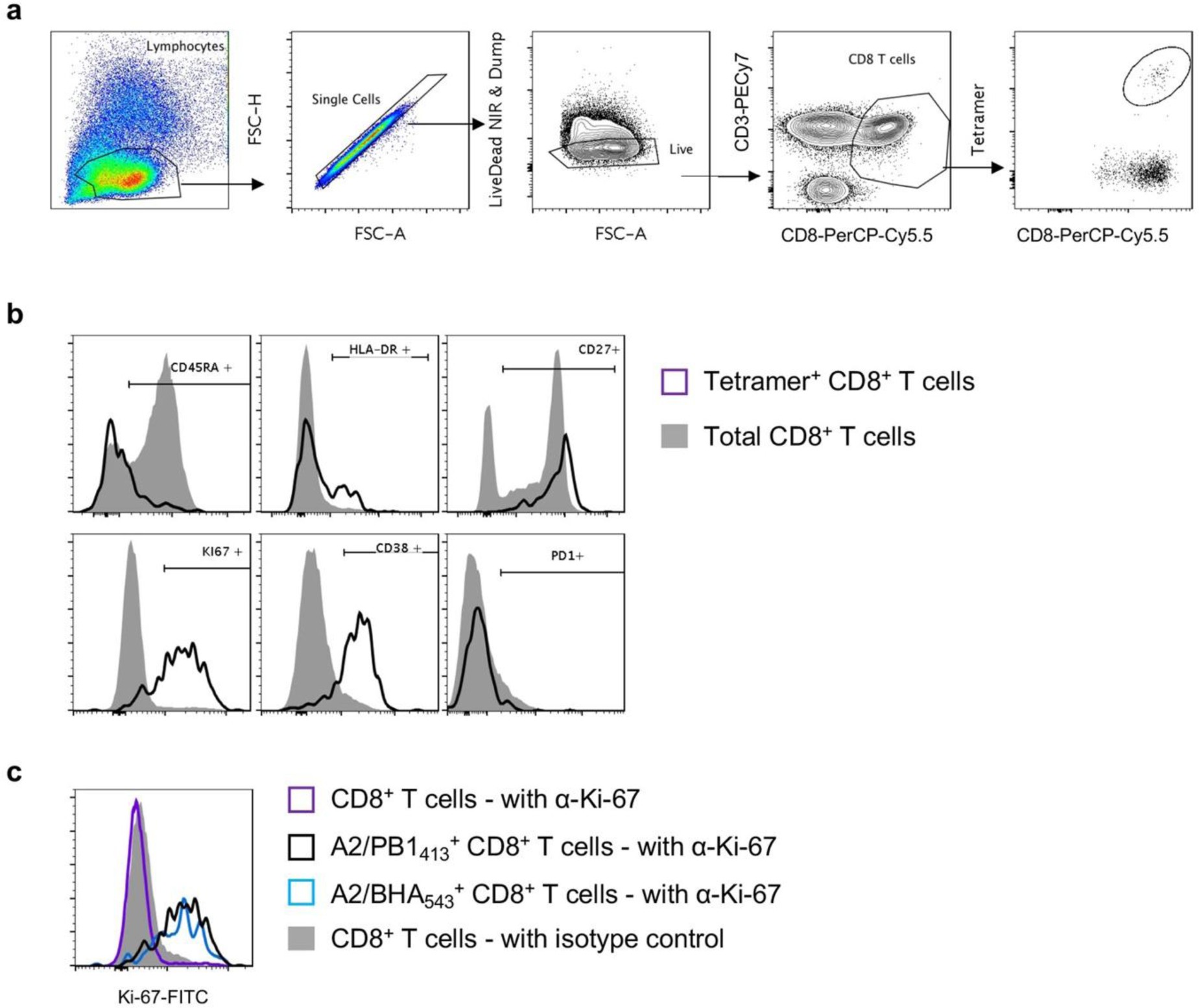

Supplementary Figure 4

(a) Tetramer+ CD8+ T cells were identified within CD8+CD3+CD14–CD19– live single lymphocytes. (b) Representative FACS plots for each marker analyzed on tetramer+ cells. Total CD8+ cells are shown for comparison. (c) Representative FACS plots for Ki-67 staining on tetramer+ and total CD8+ cells along with an isotype control representative of one experiment.
