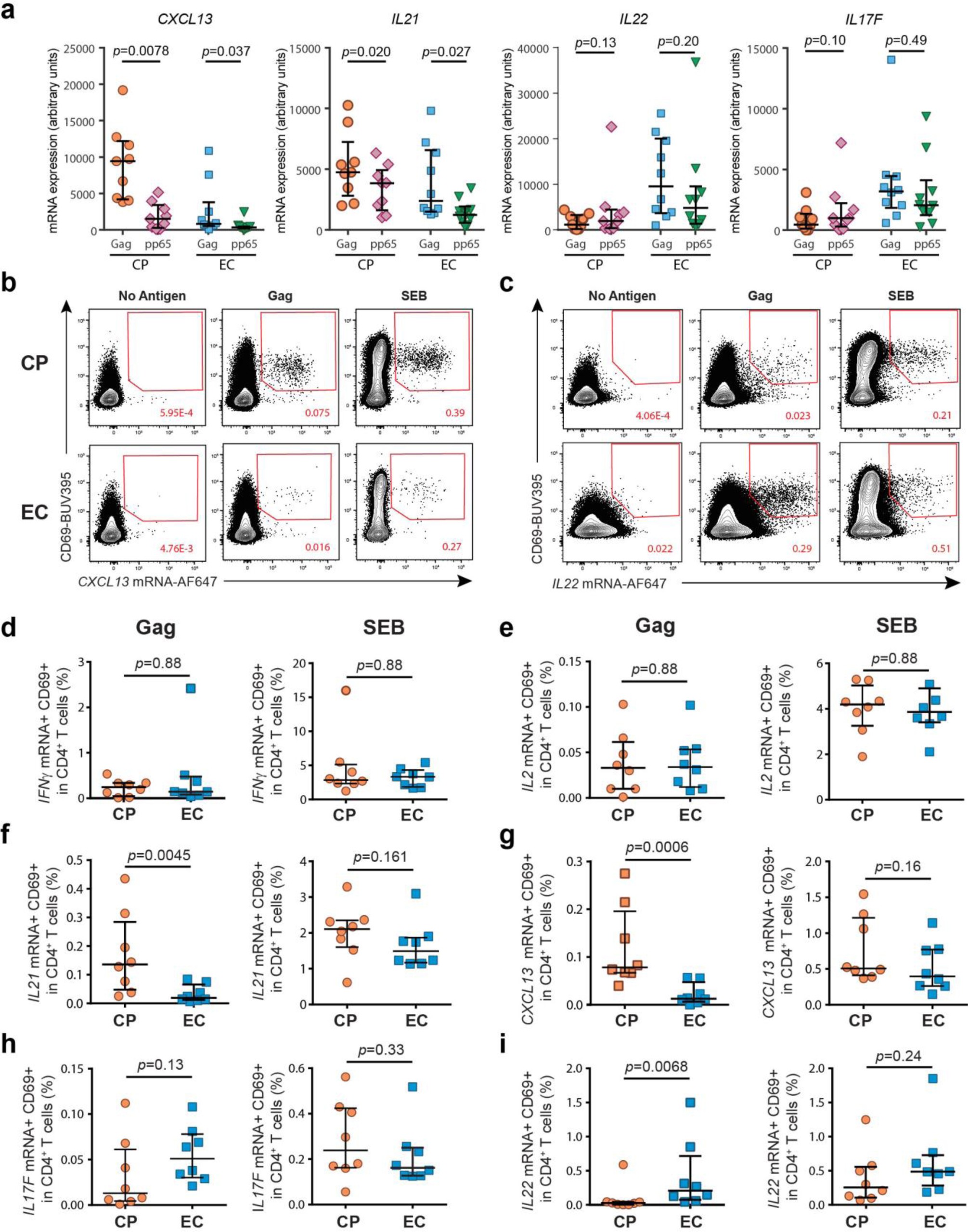

Supplementary Figure 4: TFH, TH17 and TH22 cytokine expression by HIV-specific CD4+ T cells in CPs compared to ECs.
From: Altered differentiation is central to HIV-specific CD4+ T cell dysfunction in progressive disease
(a) Statistical comparison of transcriptional levels of TFH cytokines and TH17 and TH22 cytokines in sorted HIV-specific CD4+ T cells compared to CMV-specific CD4+ T cells from the same donors, 9 h after stimulation with a gag or pp65 peptide pool (two-tailed Wilcoxon matched paired test). Transcriptional expression was assessed by RT-qPCR (Fluidigm). Bars represent median +/- interquartile range transcriptional expression (n= 9 CPs, 10 ECs). (b,c) Representative flow cytometry plots of CXCL13 and IL22 mRNA+ CD69+ CD4+ T cells after 12 h stimulation with a gag peptide pool, SEB or no antigen. Numbers in plots represent the percentage of CD69+ mRNA+ CD4+ T cells (n= 8 CPs, 8 ECs). (d-i) Statistical comparison of frequencies of CD69+ mRNA+ CD4+ T cells after stimulation with gag peptide pool or SEB detected by RNA-Flow-FISH Cytometry. (two-tailed Mann Whitney test, n= 8 CPs, 8 ECs).
