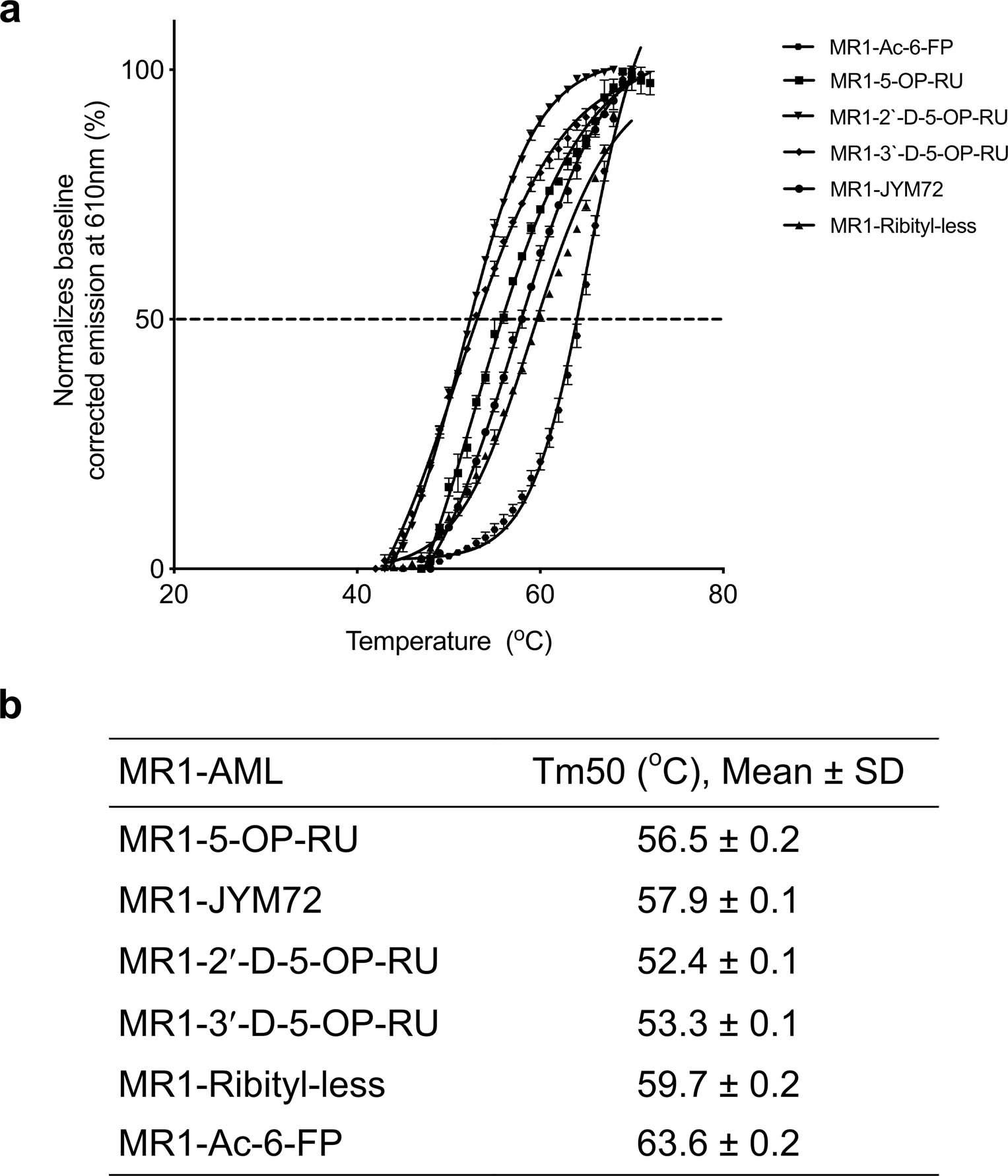

Extended Data Fig. 1: Thermostability of soluble MR1-AML by fluorescence-based thermal shift assay.
From: The molecular basis underpinning the potency and specificity of MAIT cell antigens
a, Shown is baseline-corrected, normalized emission at 610 nm plotted against temperature using Boltzmann curve-fits. Data show mean ± S.E.M from three independent experiments (n = 3). The half maximum melt point (Tm50) is indicated as a dashed line. Displayed is a representative of three independent experiments yielding similar results. b, Table summarized the Tm50 of MR1-AMLs.
