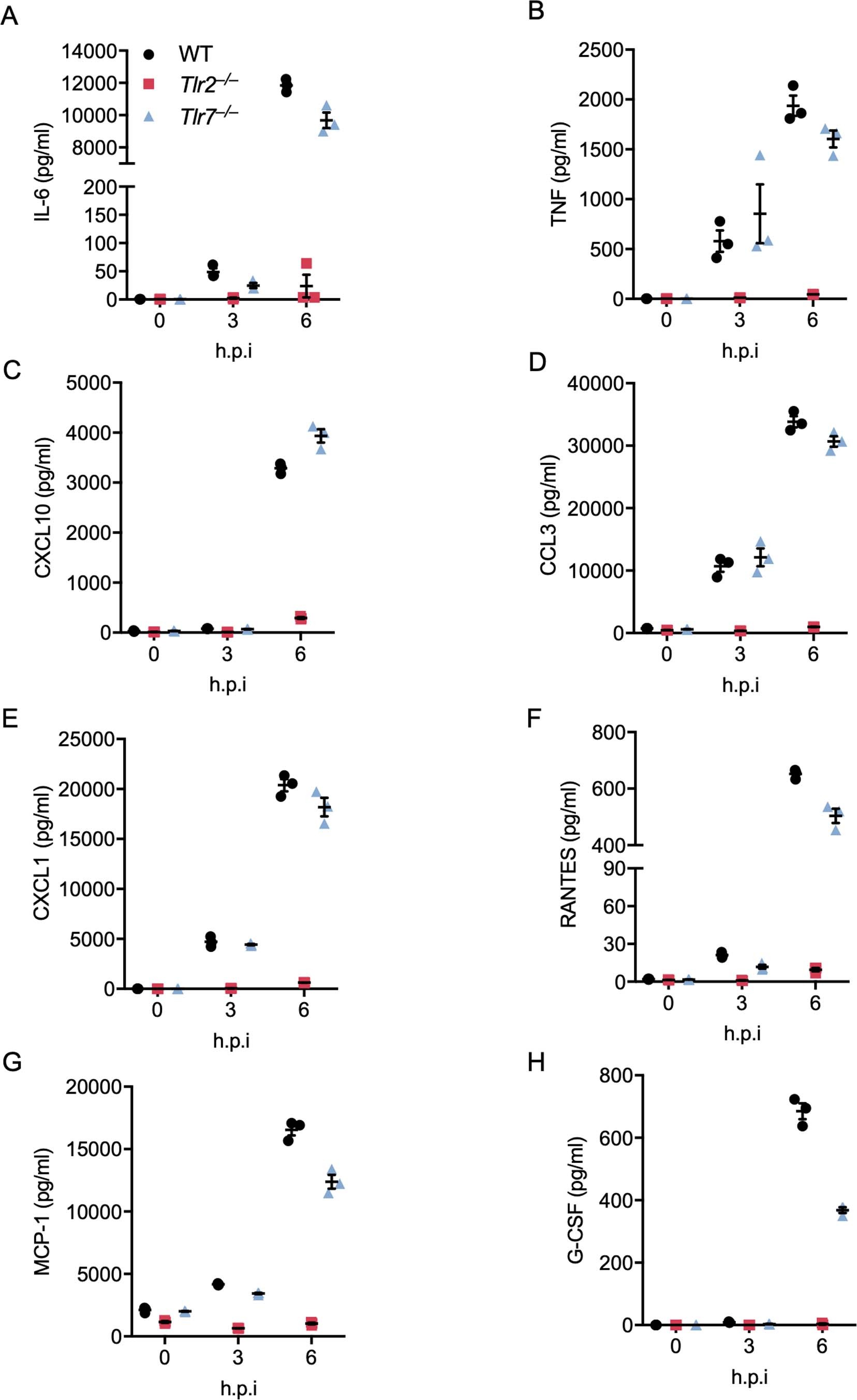

Extended Data Fig. 3: TLR2 is essential to Inflammatory cytokine expression during MHV infection.
From: TLR2 senses the SARS-CoV-2 envelope protein to produce inflammatory cytokines
a–h, Release of IL-6 (a), TNF-α (b), CXCL10 (c), CCL3 (d), CXCL1 (e), RANTES (f), MCP-1 (g), and G-CSF (h) from bone marrow-derived macrophages (BMDMs) infected with MHV at an MOI of 0.1 for the indicated time. Data are representative of three independent experiments. Data are shown as mean ± SEM (n = 3) (a–h).
