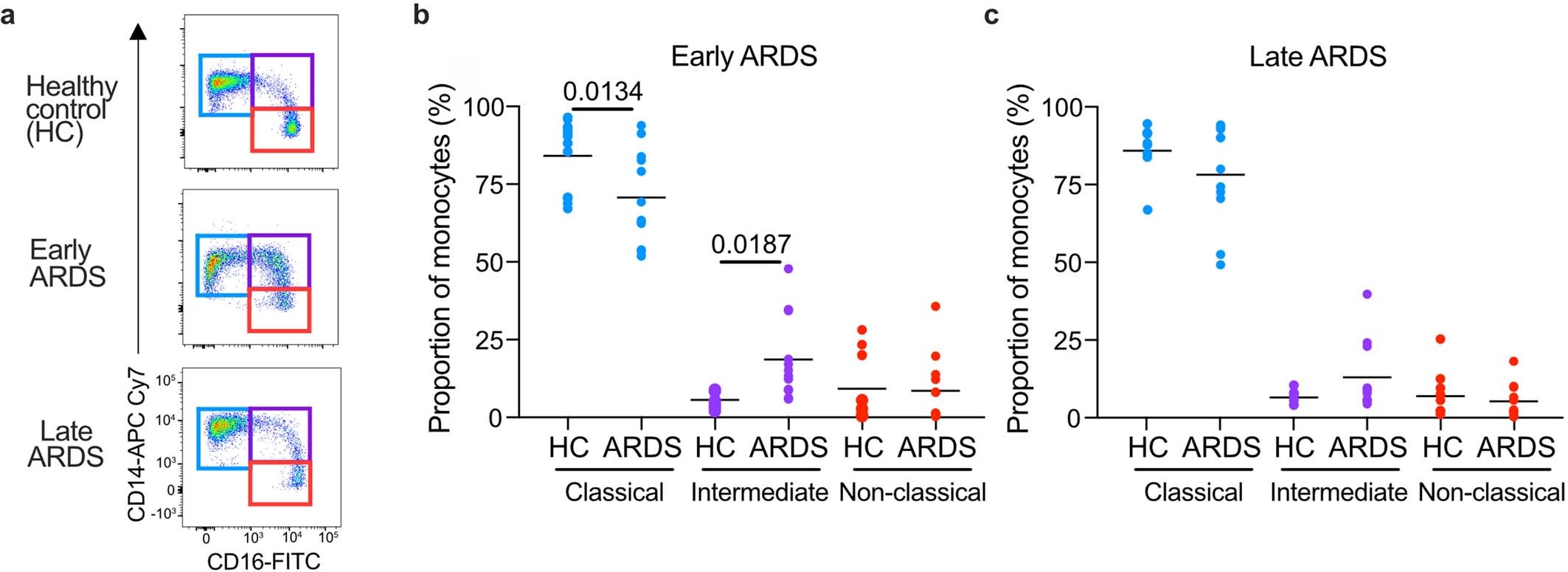

Extended Data Fig. 1: Monocyte sub-populations are altered early in ARDS.
From: Hypoxia shapes the immune landscape in lung injury and promotes the persistence of inflammation
(a) Representative plots and proportions of monocyte sub-populations based on CD14 and CD16 expression early and (b) late (c). Each data point = one individual patient/ healthy donor control (HC), b, c Data+mean, one-way ANOVA with Holm-Sidak post-test.
