Extended Data Fig. 9: Neutralization of replication competent sarbecoviruses by select RBD bnAbs.

From: Targeted isolation of diverse human protective broadly neutralizing antibodies against SARS-like viruses

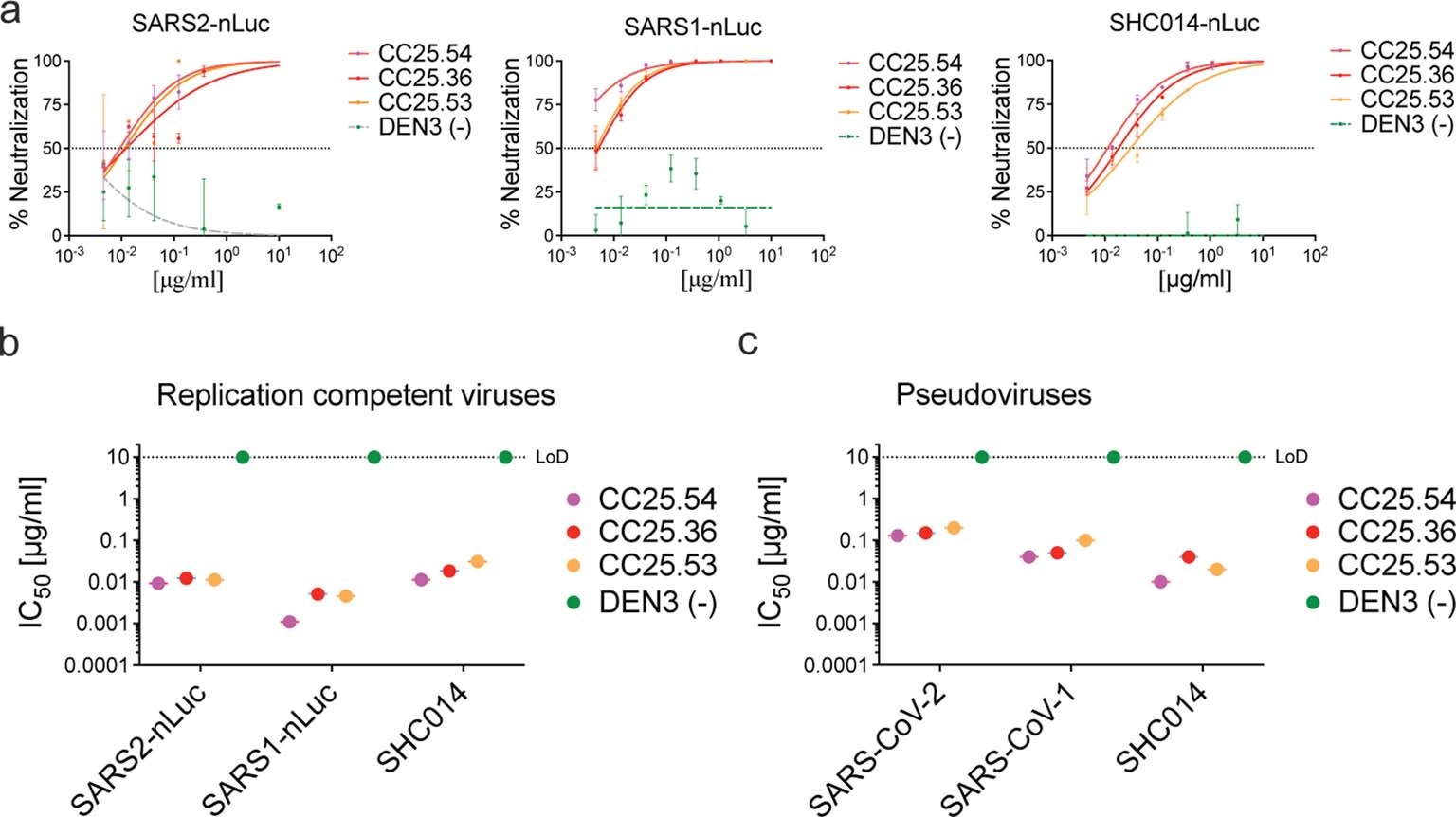

Extended Data Fig. 9: Neutralization of replication competent sarbecoviruses by select RBD bnAbs.The alternative text for this image may have been generated using AI.

a. Neutralization of replication competent viruses encoding SARS-CoV-2 (SARS2-nLuc), SARS-CoV-1 (SARS1-nLuc) and SHC014 (SHC014-nLuc) by 3 select RBD bnAbs, CC25.54, CC25.36 and CC25.53. DEN3 antibody was a negative control for the neutralization assay. Data are presented as mean values + /- SD. b-c. Comparison of IC50 neutralization titers of 3 RBD bnAbs with replication-competent (b) and pseudoviruses (c) of SARS-CoV-2, SARS-CoV-1 and SHC014 ACE2-utilizing sarbecoviruses. Data are shown as scatter dot plots with line representing the mean. The experiments were independently performed twice and consistent results were obtained.
