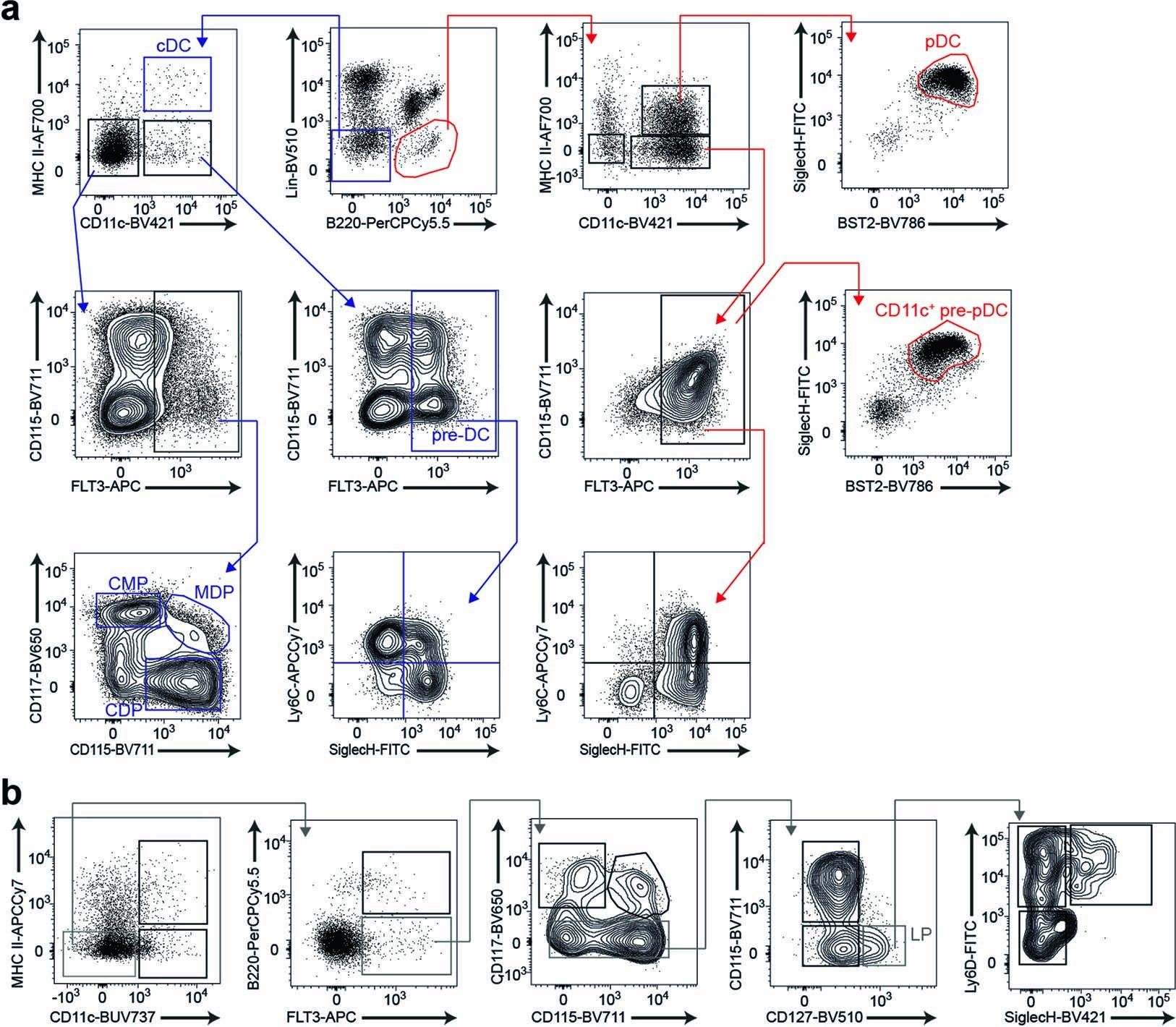

Extended Data Fig. 2: Gating strategy for bone marrow precursor analysis of pDC-Tom mice.

From: Novel mouse models based on intersectional genetics to identify and characterize plasmacytoid dendritic cells

Extended Data Fig. 2

Bone marrow cells were isolated from pDC-Tom animals, stained with fluorescently labeled antibodies and analyzed by flow cytometry. The gating strategy used to identify myeloid progenitors (a) or lymphoid progenitors (b) is depicted. The data shown are from one mouse representative of 5 pDC-Tom animals from 2 independent experiments.
