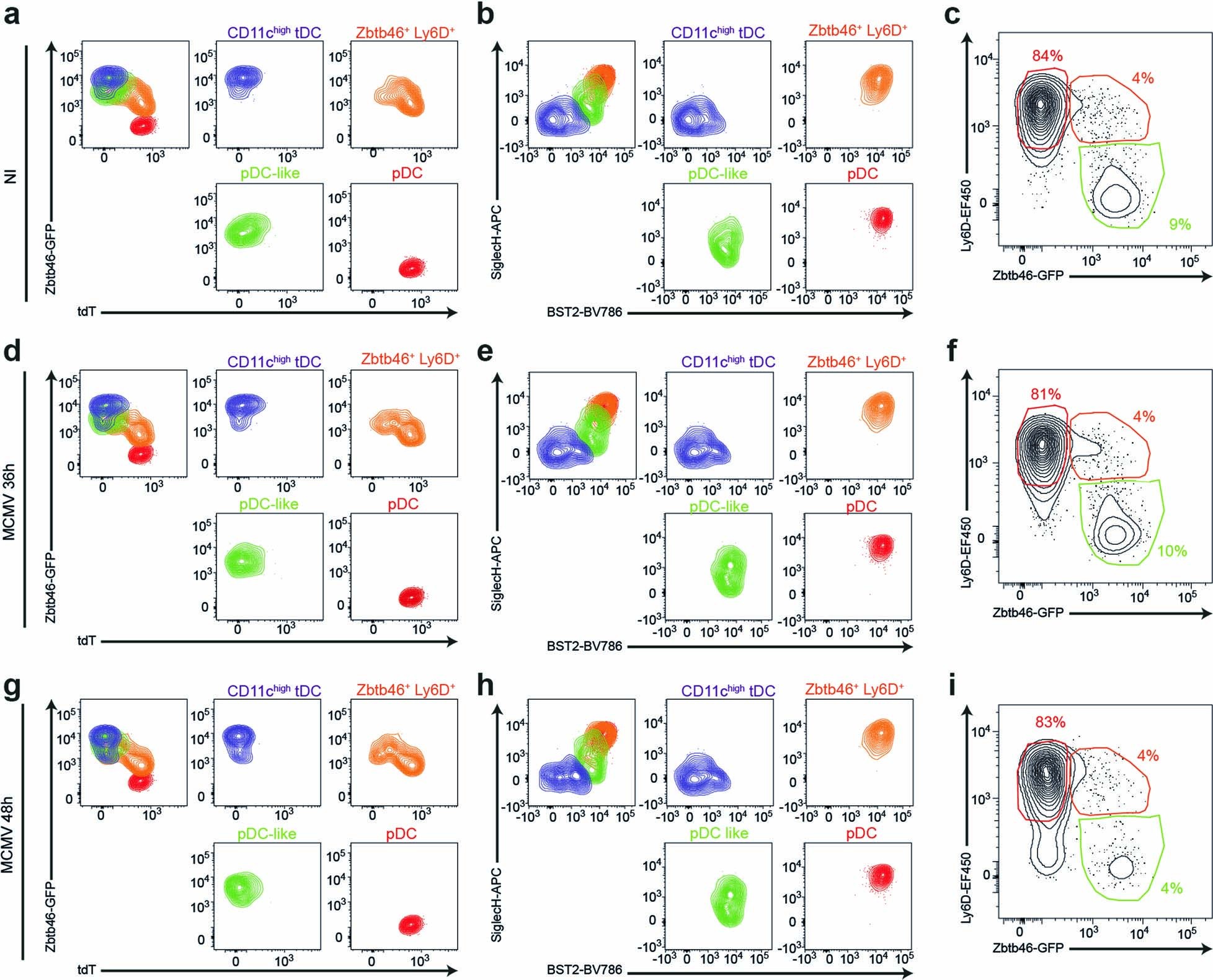

Extended Data Fig. 3: The phenotype and the proportions of Zbtb46⁺ Ly6D⁺ cells, CD11c^high tDC and pDC-like cells are relatively stable during MCMV infection.

Splenocytes from ZeST mice were stained with fluorescently labeled antibodies and analyzed by flow cytometry. Representative contour plots from uninfected animals (a-c), MCMV-infected mice at 36 h p.i (d-f) and from MCMV-infected mice at 48 p.i (g-i). The data shown are from one ZeST mouse representative of at least 10 uninfected animals (a-c), and for 7 MCMV-infected animals at 36 h p.i (d-f) or 8 MCMV-infected animals at 48 h p.i. (g-i).
