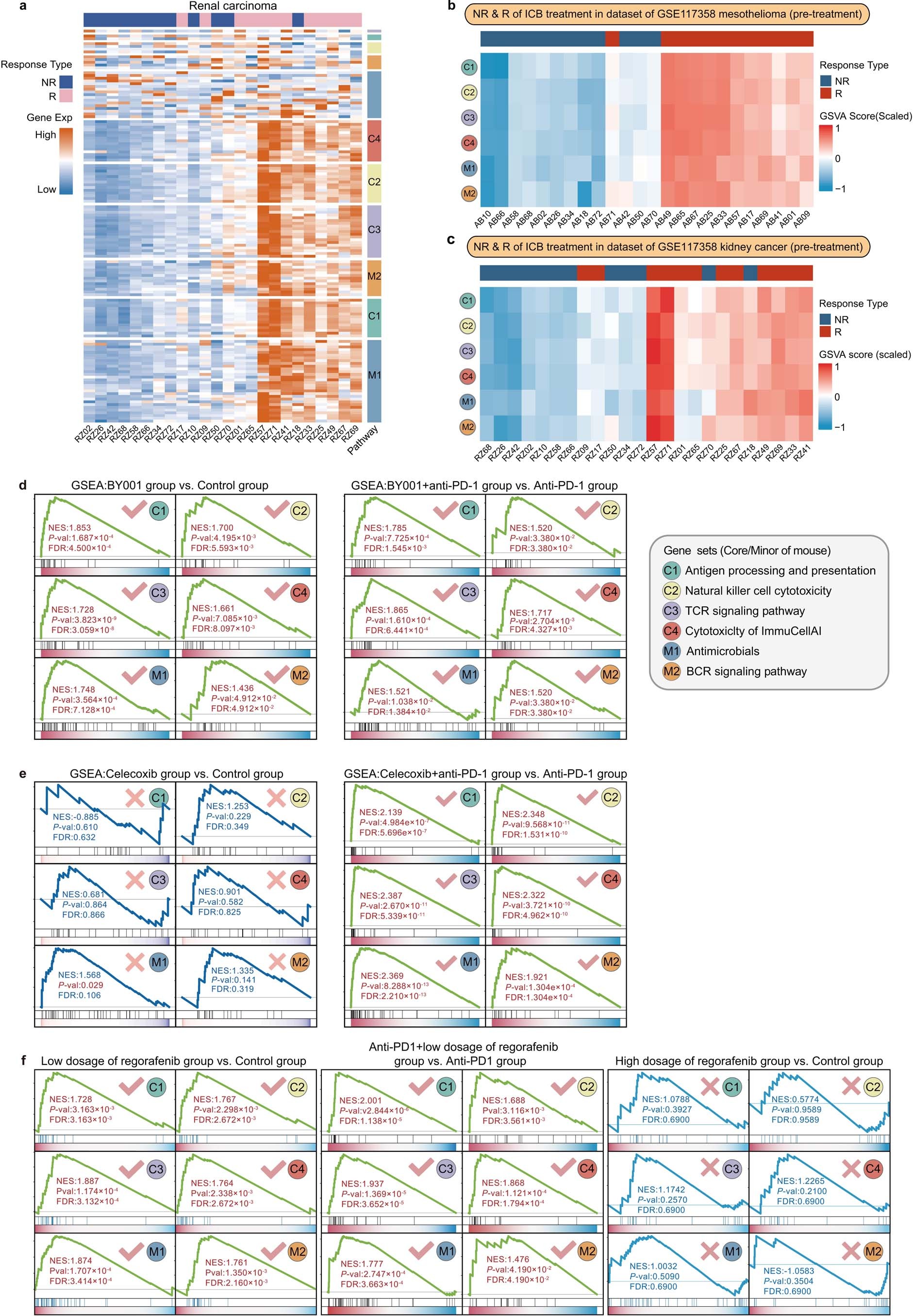

Extended Data Fig. 1: Core & Minor gene sets expression pattern.
From: A method for predicting drugs that can boost the efficacy of immune checkpoint blockade
a, Expression pattern of Core & Minor gene sets in mouse validation data of renal carcinoma. b,c, The heatmaps depicting Gene Set Variation Analysis (GSVA) enrichments for mice in response and non-response groups following ICB treatment in the mesothelioma (b) and renal cancer (c) of datasets GSE117358. d-f, GSEA enrichment plot of the six Core & Minor gene sets among different comparison groups in datasets of GSE132004 (d), GSE148950 (e) and GSE160785 (f). P-values were calculated by two-tailed Kolmogorov Smirnov test, then FDR (BH) for correction of p-values.
