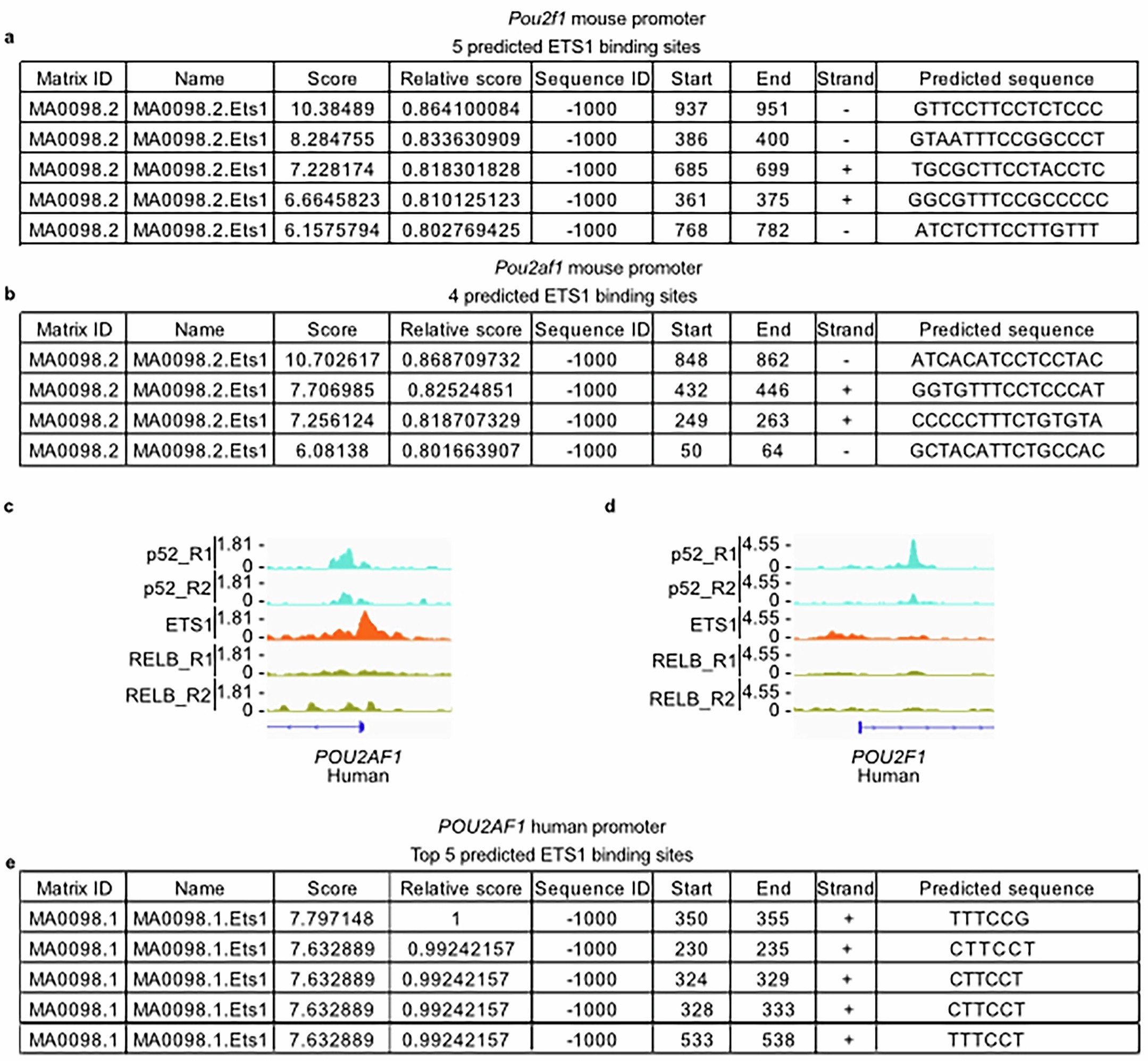

Extended Data Fig. 7: Potential ETS1 binding sites on promoters of OCT1 and OBF1.
From: The transcription complex p52–ETS1 is essential for germinal center formation
JASPAR prediction based on 1000 nucleotides upstream of the transcription start site identified (a) 5 potential binding sites for ETS1 at the mouse Pou2f1 gene promoter and (b) 4 potential binding sites for ETS1 at the mouse Pou2af1 gene promoter. ChIP-seq tracks of p52 in L1236 B cells and ETS1 and RELB in GM12828 B cells at the human (c) POU2AF1 and (d) POU2F1 gene promoters. c-d, Data retrieved from Cistrome database. (e) JASPAR prediction based on 1000 nucleotides upstream of the transcription start site identified top 5 potential binding sites for ETS1 at the human POU2AF1 gene promoter.
