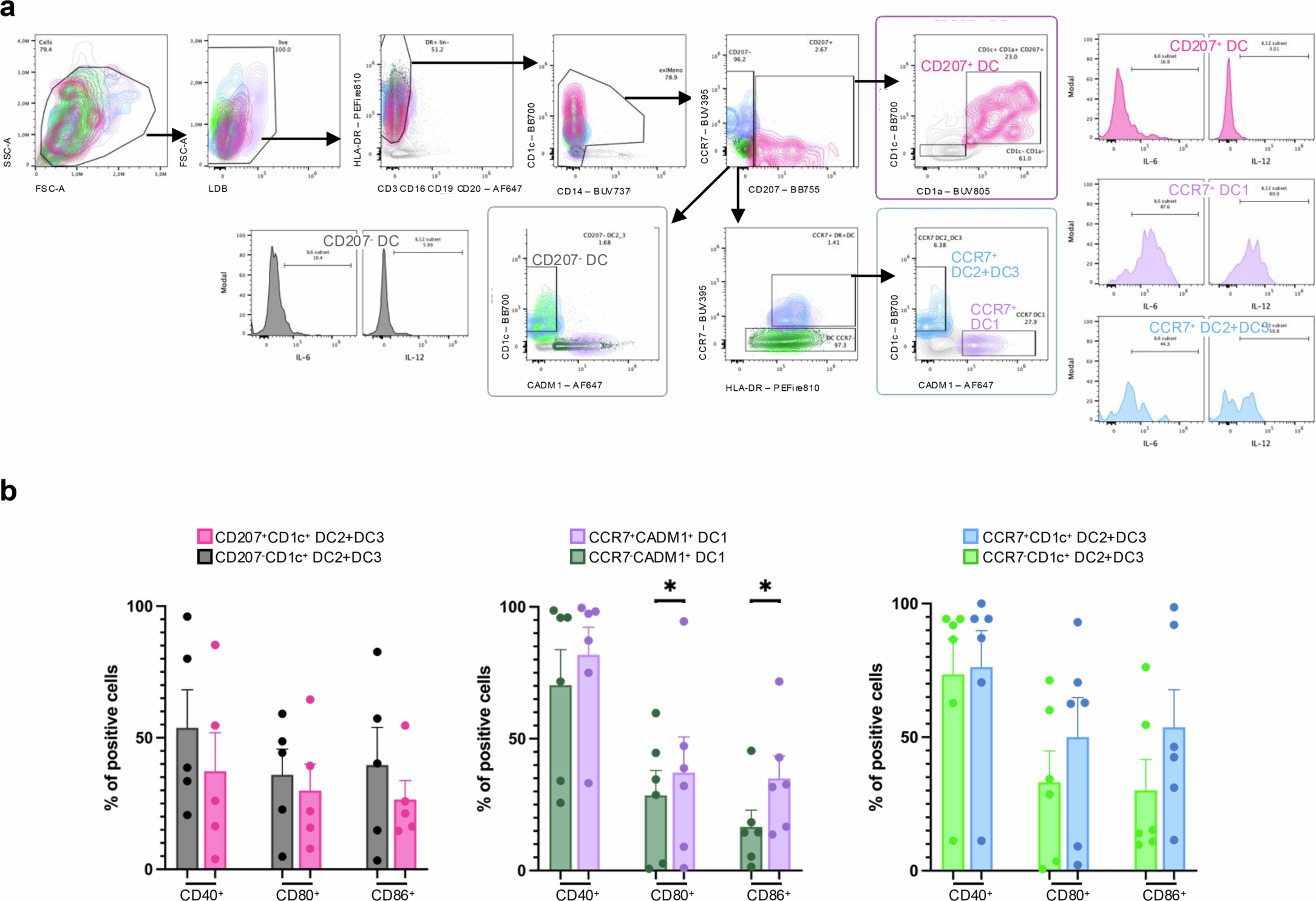

Extended Data Fig. 8: Characterisation of functional mDC states in human cancer patients.
From: DC subsets and states unraveled across human juxtatumoral and malignant tissues
a, Gating strategy for identifying mDC populations in the ICS experiment (see Fig. 7a-d). b, Percentage of positive cells for co-stimulatory factors in, (Left) CD1c+ DC2/3 CD207 +/−, (Middle) CADM1+ DC1 CCR7+/−,(Right) CD1c+DC2/3 CCR7+/−. P-values were calculated using a Wilcoxon non-parametric paired test, two-tailed. Related to Fig. 7.
