Supplementary Figure 12: Corroborative evidence for 5′ ends identified by standard RNA-seq.
From: Comprehensive comparative analysis of 5′-end RNA-sequencing methods

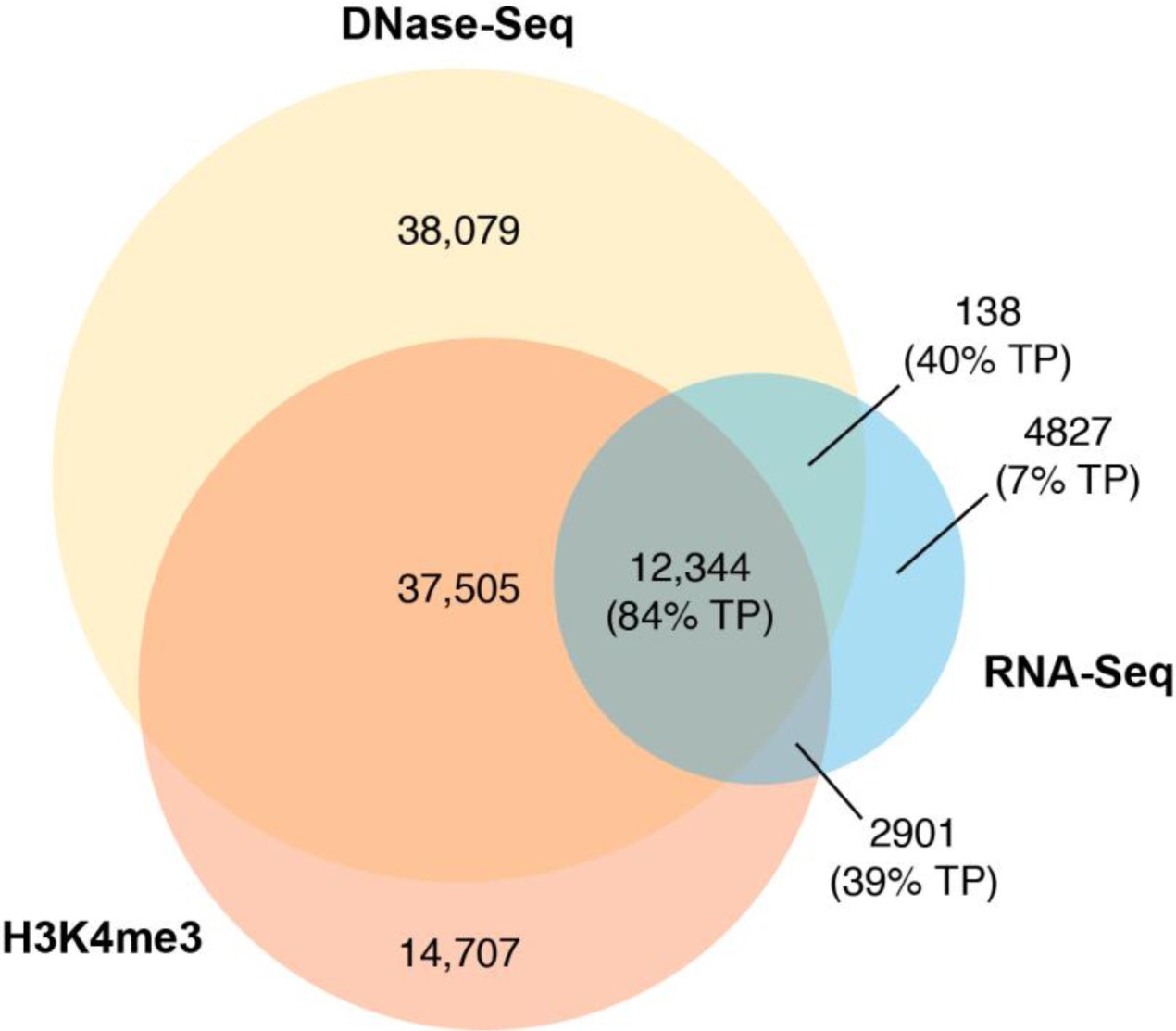

Venn diagram showing TSS prediction with Standard RNA-Seq, DNase-Seq and H3K4me3 ChIP-Seq data. Numbers of peaks shown here in overlapping categories correspond to RNA-Seq peaks for all overlaps involving RNA-Seq peaks and DNase-Seq peaks in the overlap with only H3K4me3 ChIP-Seq peaks. For each subset of RNA-Seq peaks, we also show the % true positives (TPs) out of all the RNA-Seq peaks in that category. Areas not to scale.
