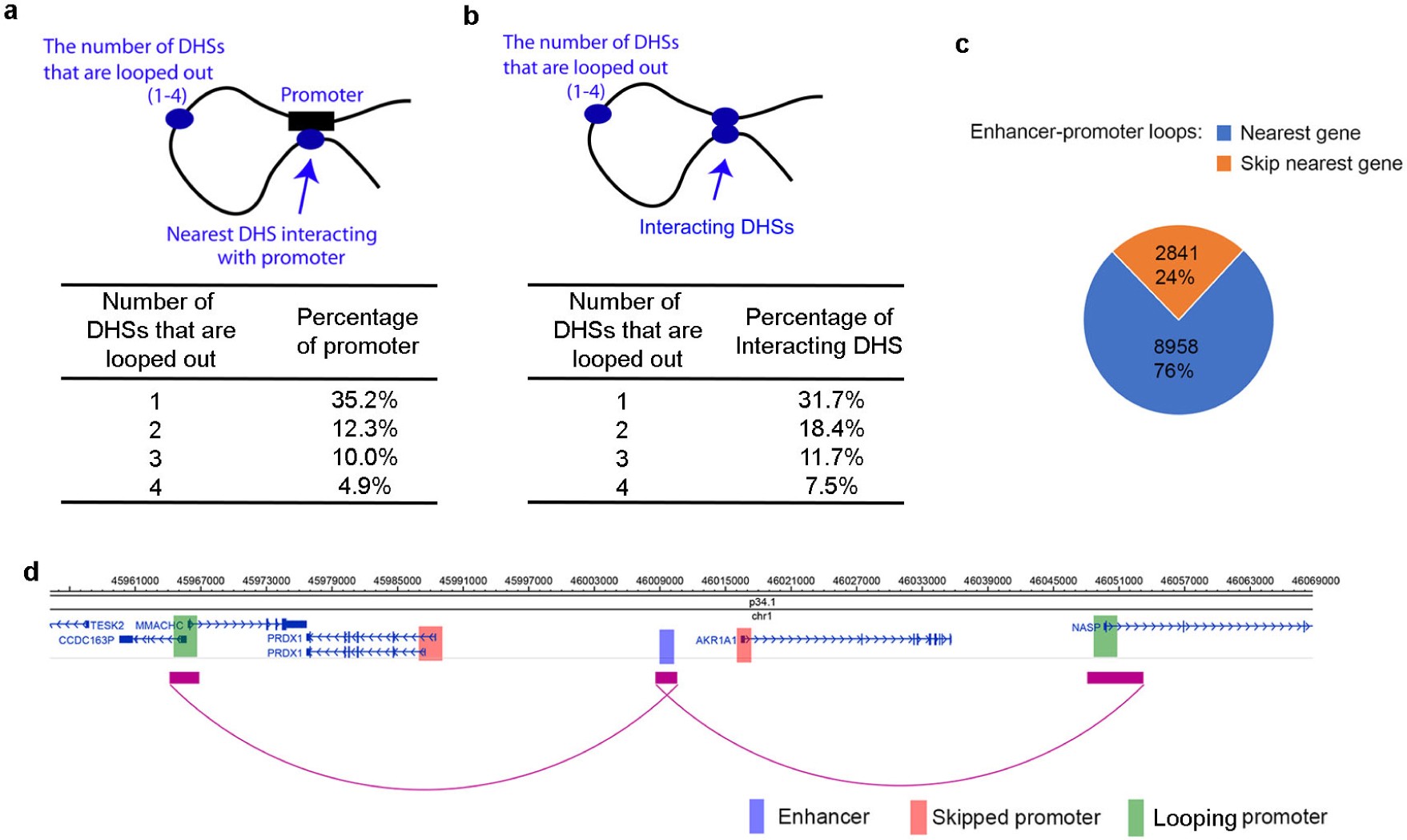

Supplementary Figure 8: Chromatin accessibility and proximity are not sufficient to allow interaction.
From: Trac-looping measures genome structure and chromatin accessibility
(a) The nearest DHS interacting with a promoter is identified and the number of DHSs that are looped out by the interaction are counted and shown in the table. (b) The nearest DHS that interacts with the reference DHS is identified and the number of DHSs that are looped out by the interaction are counted. (c) The fraction of enhancers that either interact with the nearest promoters or skip the nearest promoters. (d) Genome Browser image showing an enhancer that interacts with promoters other than the nearest promoter.
