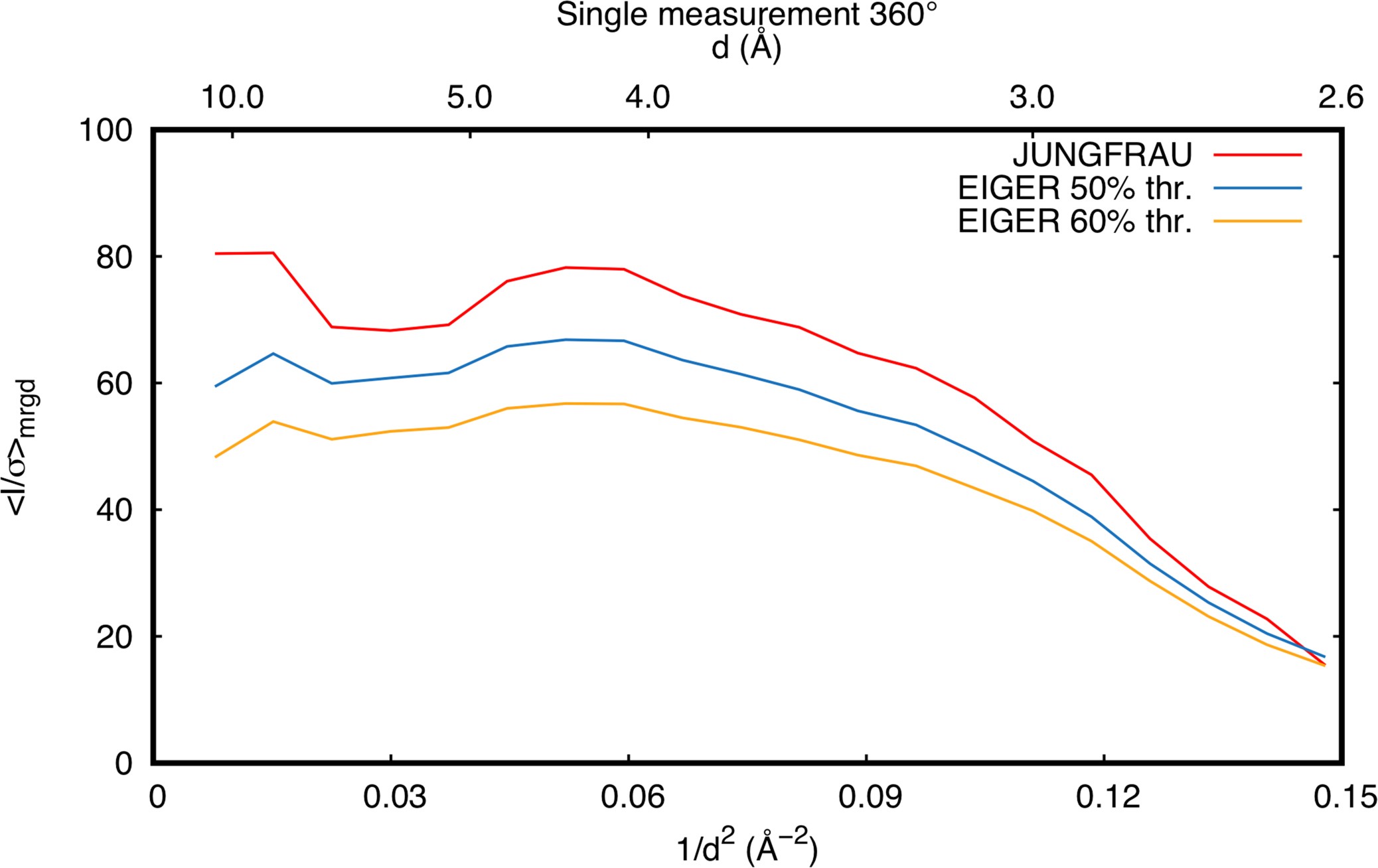

Supplementary Figure 3: Comparison of 6-keV data from a thaumatin crystal measured with JUNGFRAU and EIGER detectors (two threshold settings for EIGER).
From: Fast and accurate data collection for macromolecular crystallography using the JUNGFRAU detector
The <I/σ>mrgd values are plotted as a function of resolution.
