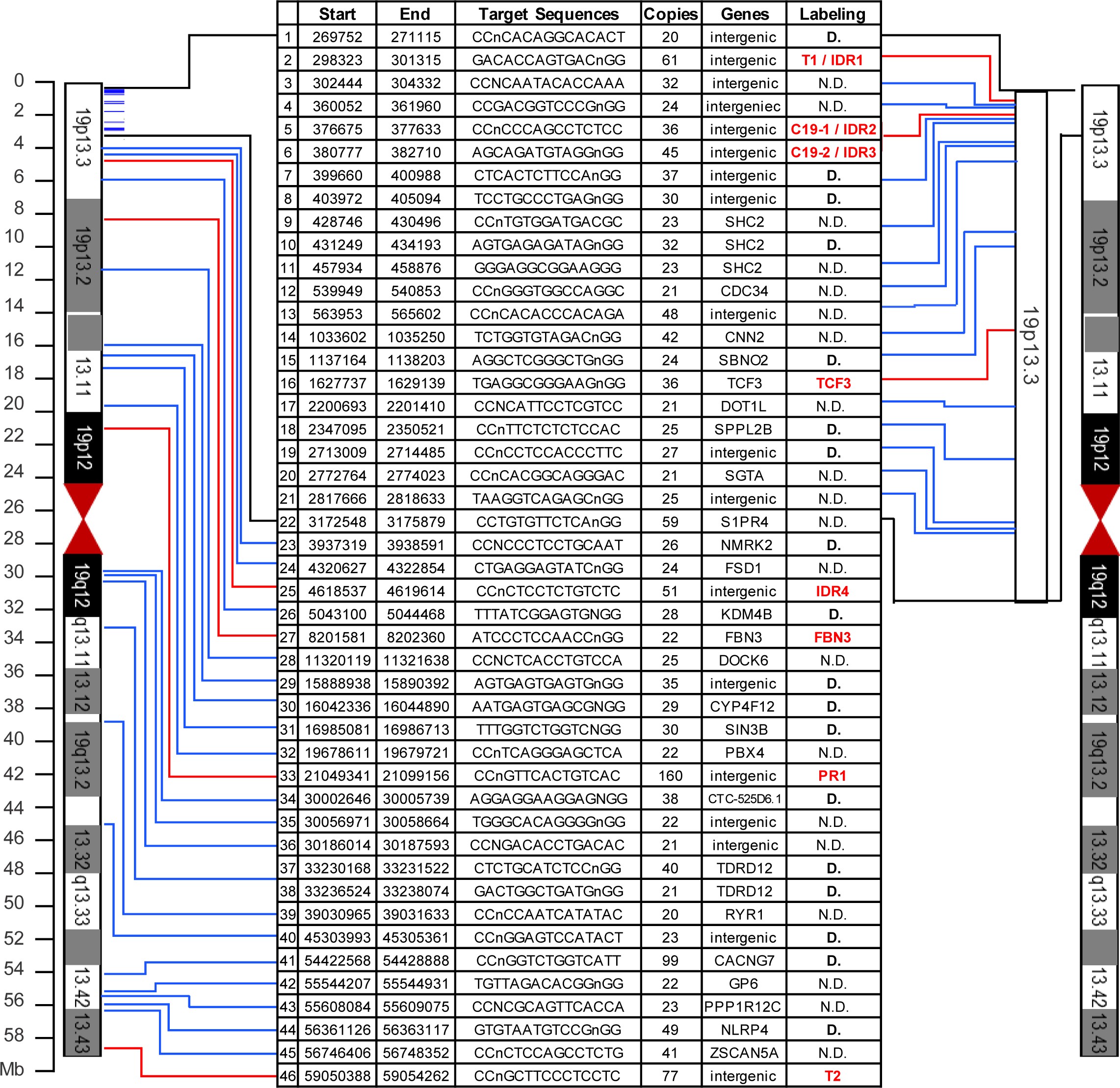

Supplementary Figure 10: CRISPR-Sirius labeling of chromosome-19-specific repeats.
From: CRISPR-Sirius: RNA scaffolds for signal amplification in genome imaging
All 46 repetitive regions containing ≥20 copies of target sites were examined by CRISPR-Sirius labeling. The coordinates of each repetitive region in the reference human genome hg19, guide RNA target sequences, copy numbers and genic or intergenic locations are shown in the table, together with whether they were detectable (D.) or non-detectable (N.D.) by CRISPR-Sirius. The loci chosen for tricolor imaging and also the distance and dynamics measurements are marked in red.
