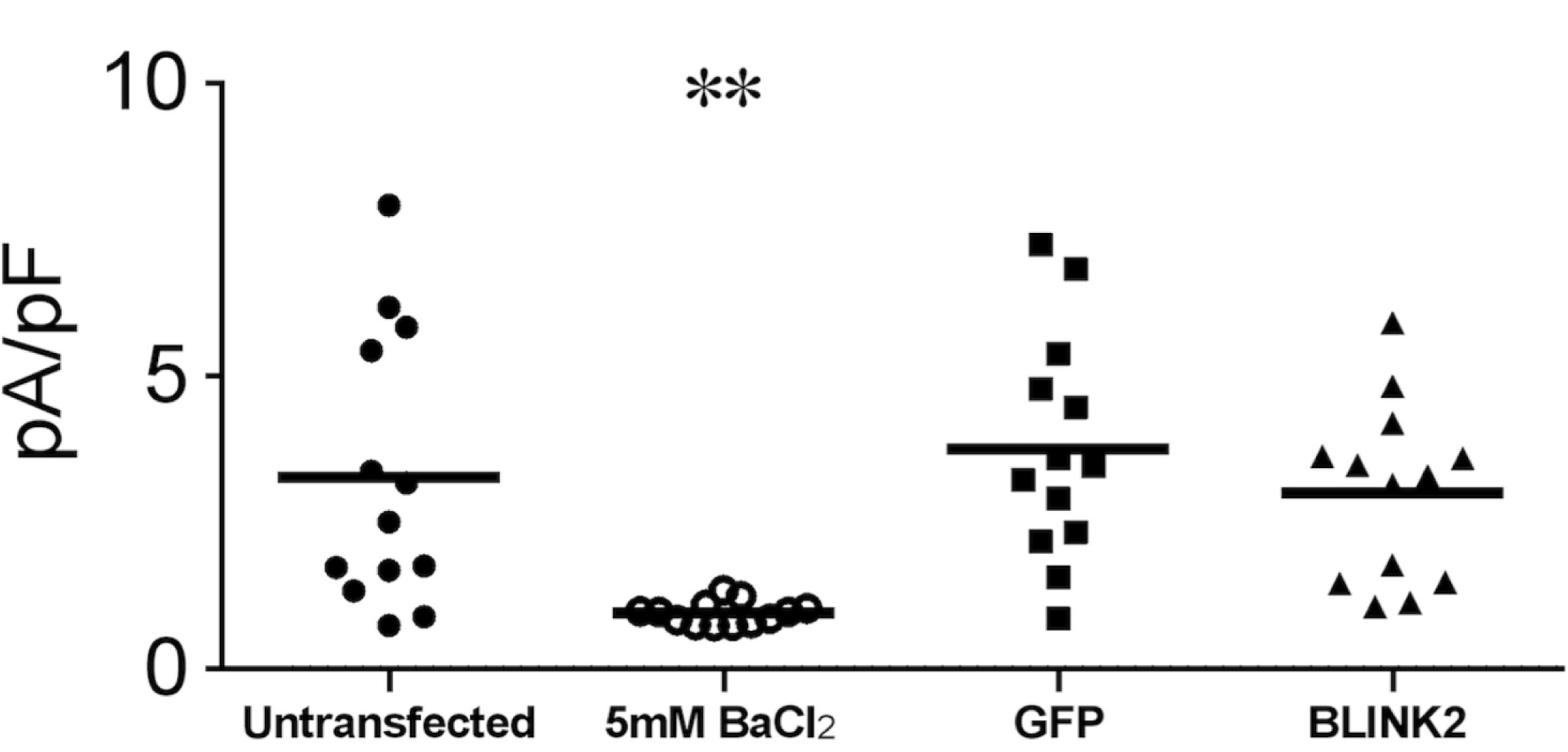

Supplementary Figure 1: Comparison of dark current levels in BLINK2-transfected and control COS7 cells.
From: A light-gated potassium channel for sustained neuronal inhibition
Currents recorded in the dark at –60 mV (N = 13 cells each) are shown normalized for cell capacitance (pA/pF) in the following conditions: untransfected, + 5 mM BaCl2, GFP-transfected and BLINK2-transfected cells. The mean values of the experimental groups Untransfected, GFP, and BLINK2 show no significant differences (P = 0.64). Only in barium-treated cells the current values were significantly smaller than in untransfected, GFP and BLINK2 (P = 0.001, 0.0001 and 0.003, respectively). Significance was calculated by one-way ANOVA and Tukey post hoc test.
