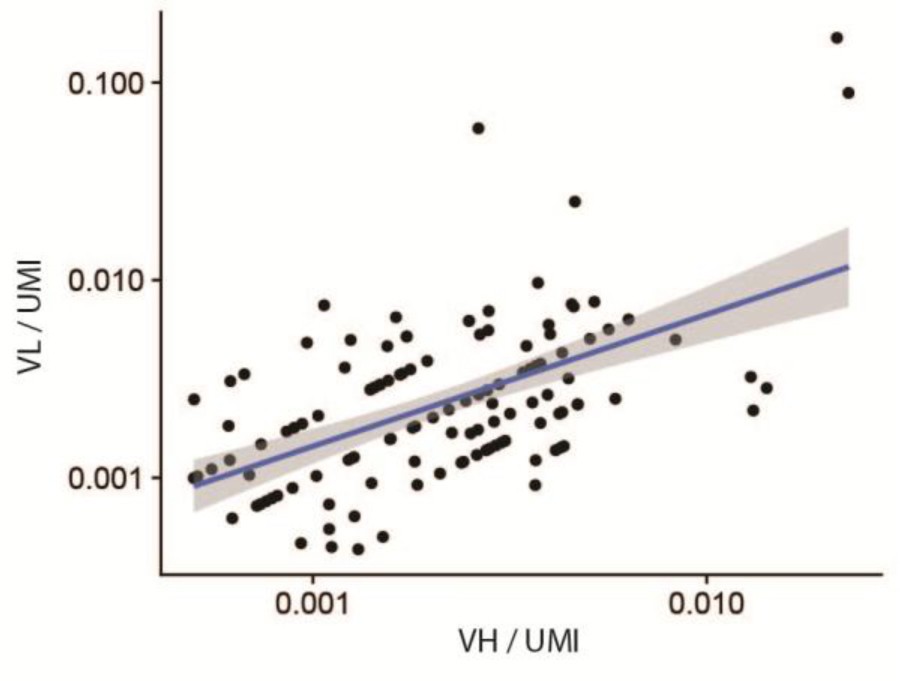

Supplementary Figure 7: VH and VL expression in single B cells is correlated.
From: Simultaneous multiplexed amplicon sequencing and transcriptome profiling in single cells
The fraction of heavy chain (VH) transcripts versus the fraction of variable light chain (VL) transcripts detected in single cells is depicted (PBMC dataset, B cells for which the complete CDR3L and CDR3H region was detected, n = 120). The blue line represents the best fit from linear regression (shaded area represent 95% confidence interval). Pearson correlation 0.683 (P << 10–10).
