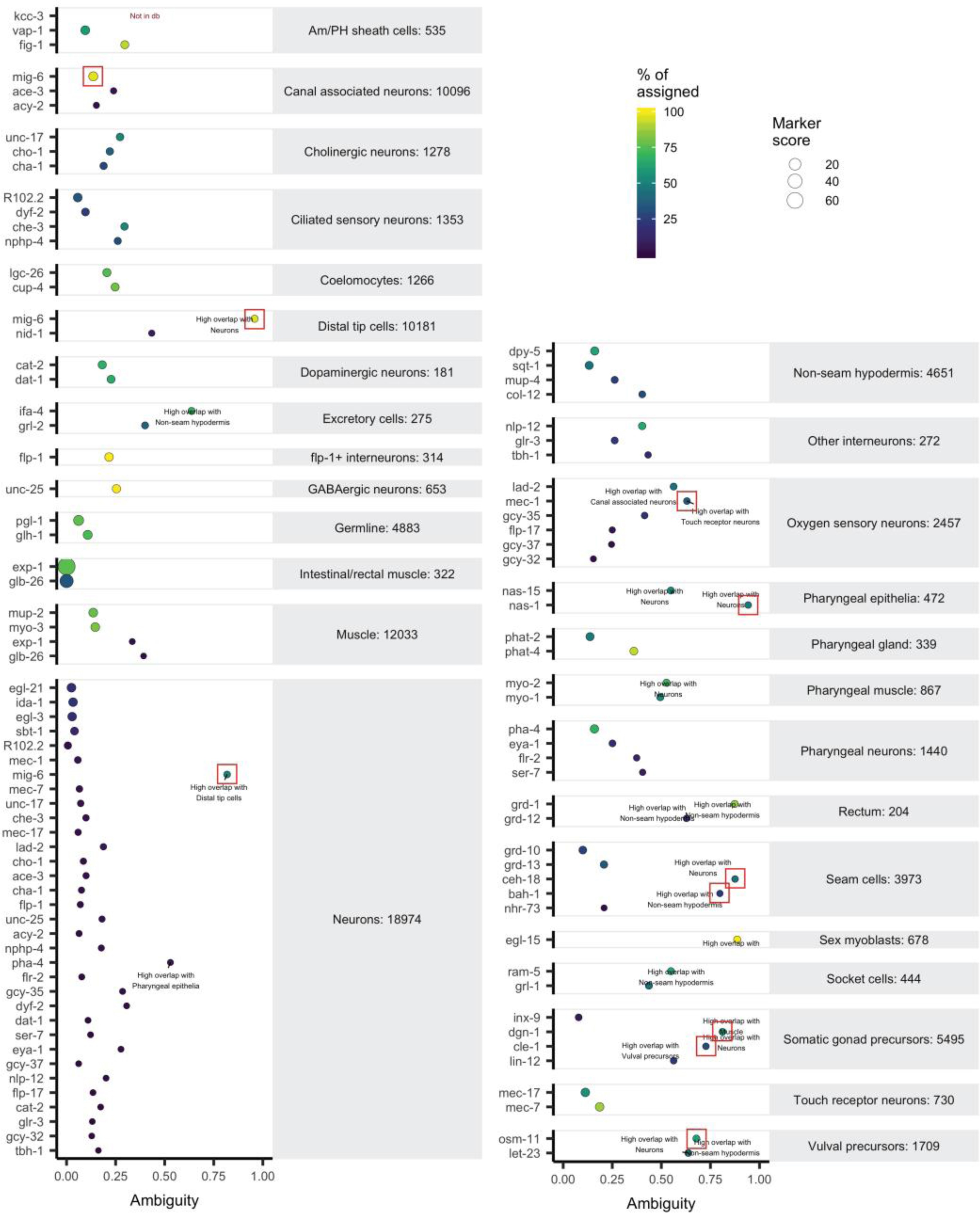

Supplementary Figure 6: Marker quality chart for C. elegans.
From: Supervised classification enables rapid annotation of cell atlases
X-axis represents the ambiguity score, defined as the ratio of number of ambiguous cells when the marker is included over the number of cells the marker is expressed in. Color represents the percent of nominated cells for that cell type that were nominated by that marker, and the number next to the cell type names is the total number of nominated cells in that cell type. Markers were initially chosen directly from ref. 11. Markers excluded because of high ambiguity are marked with red boxes.
