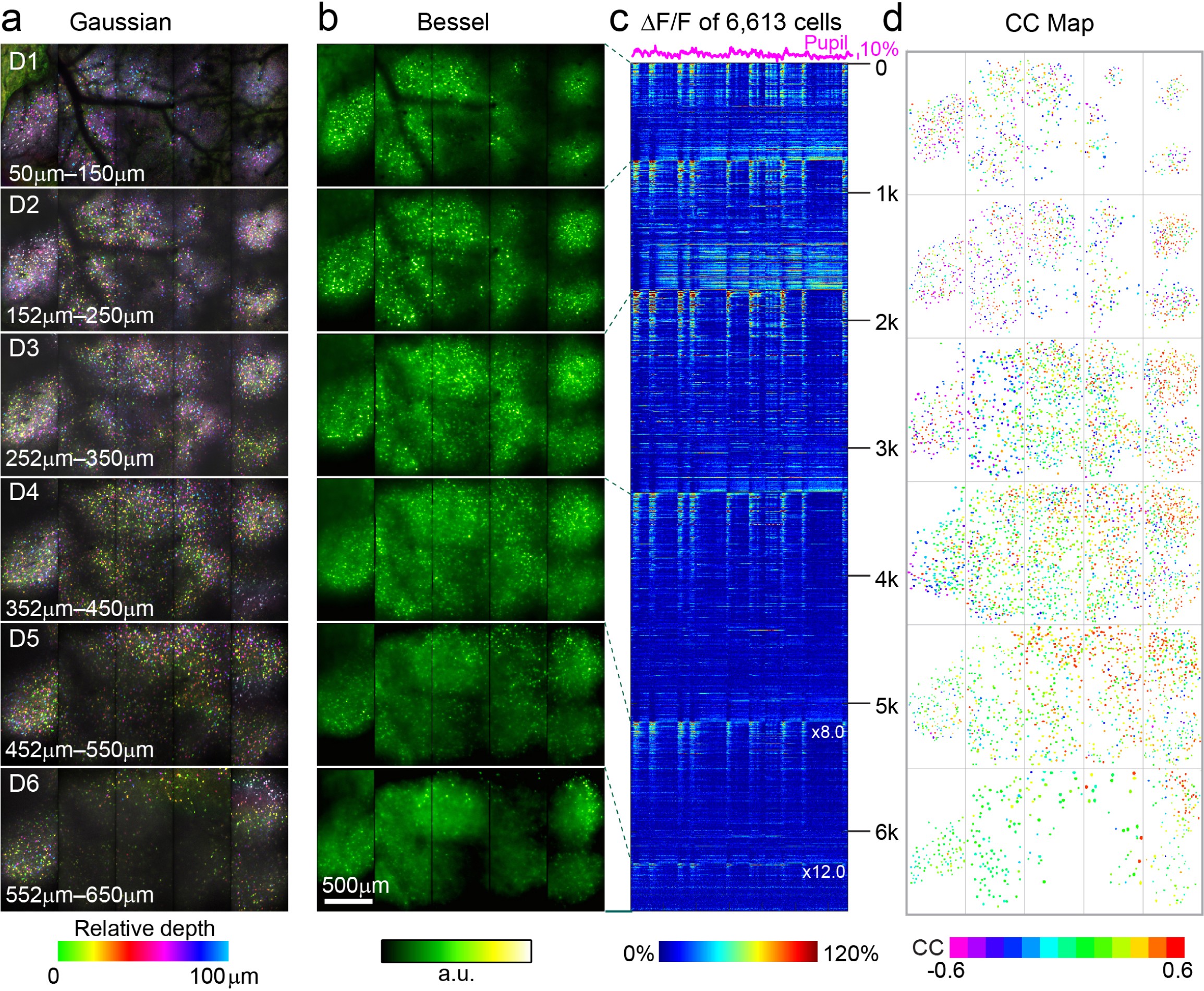

Supplementary Figure 10: Analysis on GABAergic neuron ensemble activity within multiple cortical areas of an awake mouse using manually segmented ROIs.
From: Rapid mesoscale volumetric imaging of neural activity with synaptic resolution
(a, b) Same as Fig. 3a, b. (c) Calcium transients (ΔF/F) of 6,613 neurons in the six depth ranges, sorted by decreasing correlation with pupil area (top trace). (f) Map of the Pearson’s correlation coefficients (CC) for individual neurons, color-coded by its CC value. n = 1 mouse was used for this experiment.
