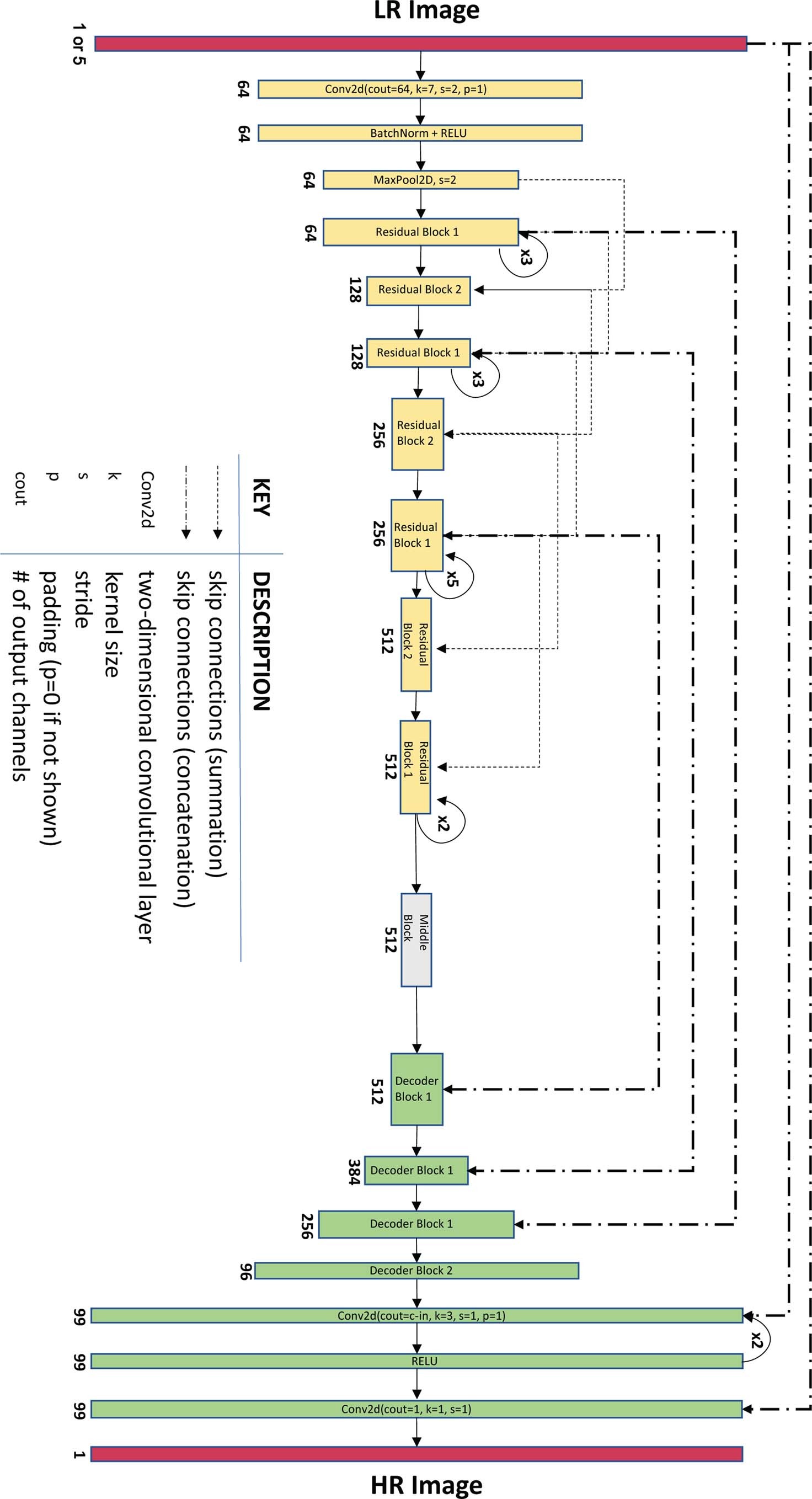

Extended Data Fig. 1: PSSR Neural Network architecture.
From: Deep learning-based point-scanning super-resolution imaging
Shown is the ResNet-34 based U-Net architecture. Single-frame PSSR (PSSR-SF) and multi-frame PSSR (PSSR-MF) have 1 or 5 input channels, separately.
