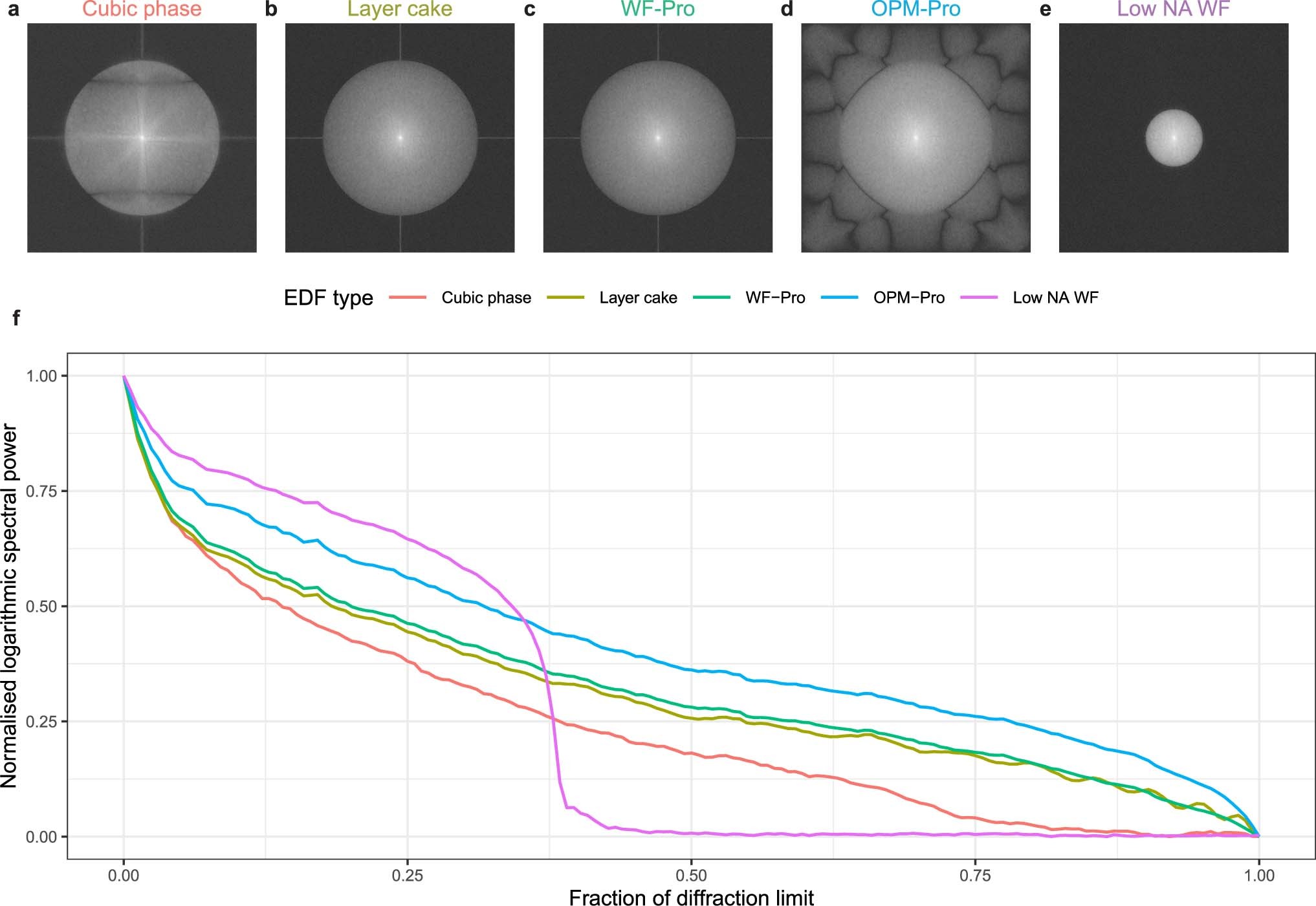

Extended Data Fig. 2: Spectral analysis of simulated projection method and extended-depth-of-field techniques.
From: Real-time multi-angle projection imaging of biological dynamics
Logarithmically scaled, normalized Fourier power spectra for corresponding raw images in Extended Data Fig. 1: a cubic phase mask, b layer cake mask, c projection method applied to a wide-field microscope, d projection method applied to the oblique plane microscope described in the main text, e a wide-field microscope of lower numerical aperture (0.5). f shows radially averaged profiles of all spectra, up to the diffraction limit.
