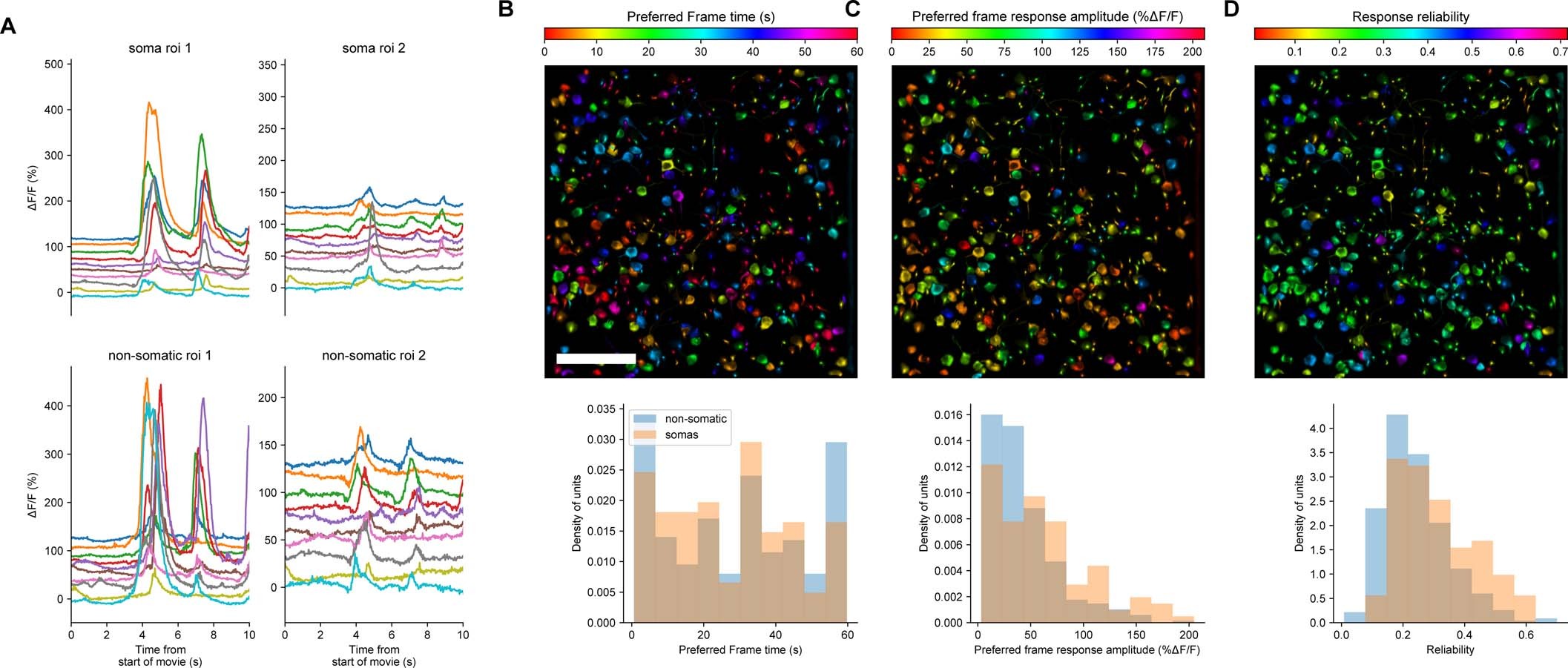

Extended Data Fig. 5: Natural movie responses extracted from somatic and non-somatic compartments after DeepInterpolation.
From: Removing independent noise in systems neuroscience data using DeepInterpolation
(a) Example calcium responses to 10 repeats of a natural movie for 4 examples ROIs, both somatic and non-somatic (b,c,d) Top: Analysis of the sensory response to 10 repeats of a natural movie visual stimulus. Each ROI detected after DeepInterpolation was colored by the preferred movie frame time (b), the amplitude of the calcium response at the preferred frame (c) and the response reliability (d). Scale bar is 100 μm. (b) Bottom: Distribution of preferred frame of the natural movie for both somatic and non-somatic ROIs in the same field of view. (c) Bottom: Same as (B) for response amplitude at the preferred time. (d) Bottom: Reliability of all ROIs response to the natural movie. Reliability was computed by averaging all pairwise cross-correlation between each individual trial.
