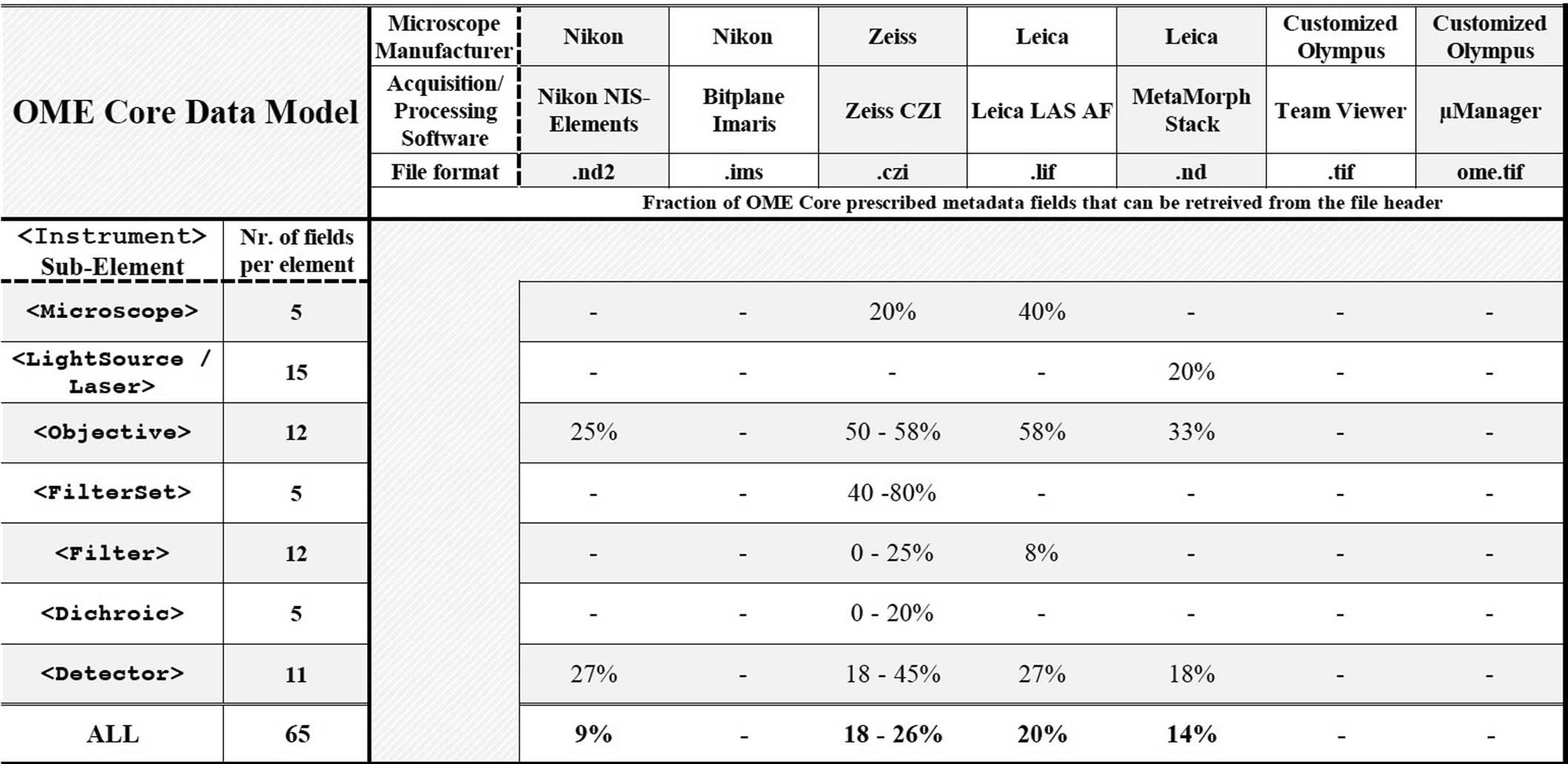

Extended Data Fig. 2: Table I | Percentage of OME Data Model Core <Instrument> element attributes that can be retrieved from image file headers and interpreted by BioFormats.

From: Micro-Meta App: an interactive tool for collecting microscopy metadata based on community specifications

Extended Data Fig. 2: Table I | Percentage of OME Data Model Core <Instrument> element attributes that can be retrieved from image file headers and interpreted by BioFormats.

The fraction of attributes associated with <Instrument> sub-elements (for example, <Microscope>, <Objective>, <Detector>, etc.,) of the core of the OME Data Model, whose values could be retrieved in the header of the raw image data files associated with the case studies presented in Fig. 2, Extended Data Figs. 6–9 and Supplementary Figs. 3–15, was determined and is reported above.
