Fig. 2: Design of hardware is under-shared in publications.

From: CAD we share? Publishing reproducible microscope hardware

Fig. 2

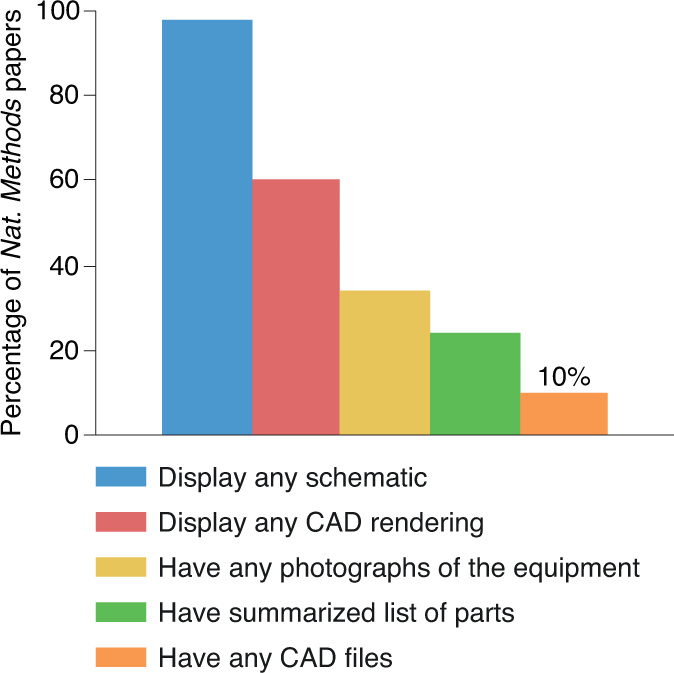

Survey of microscopy-related publications in Nature Methods published in 2009–2020 that include any amount of information related to design of the experimental setup. Many publications use CAD byproducts (renderings), but few publications present any CAD files. When files are made available, the formats are inconsistent.
