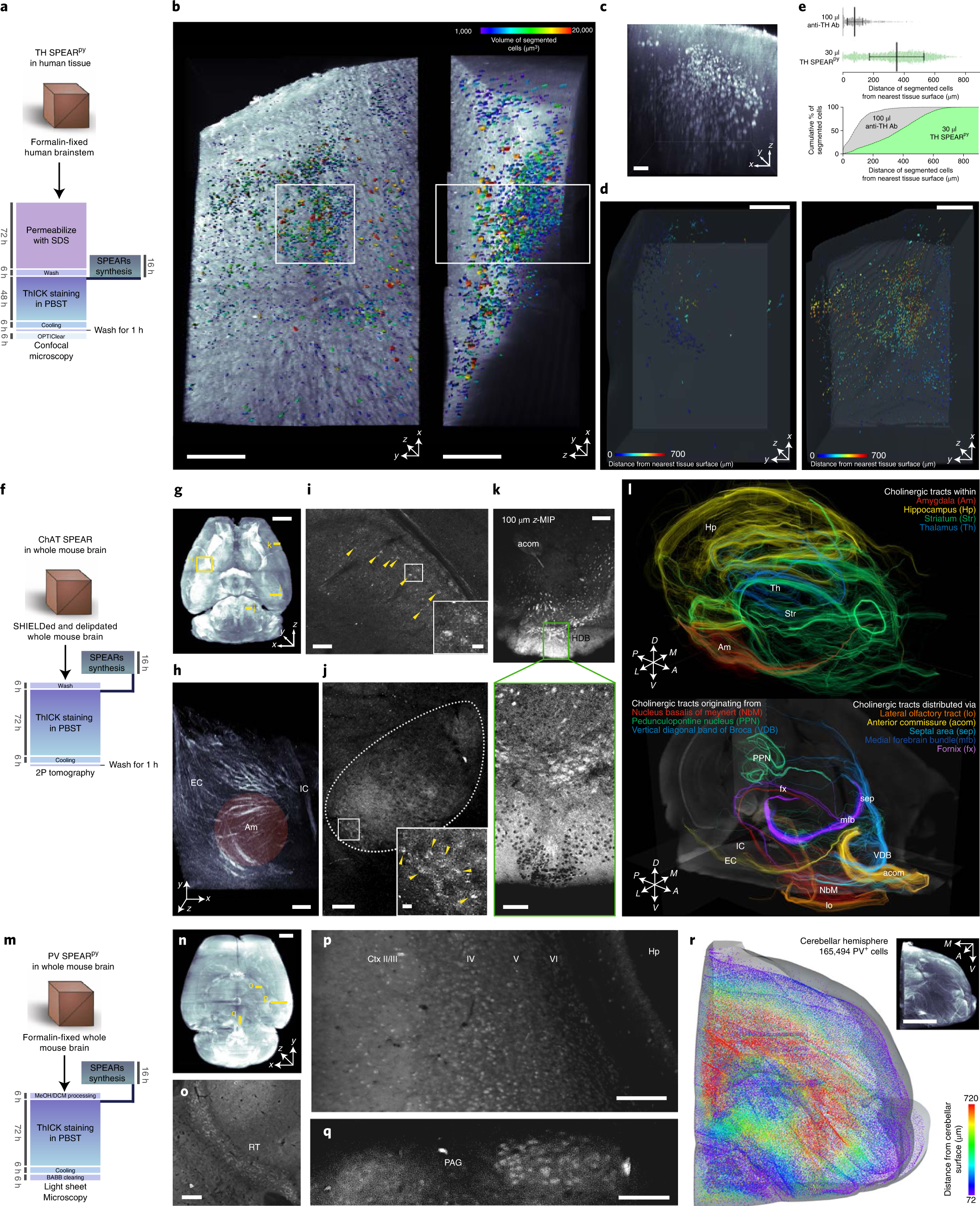

Fig. 4: Application of SPEARs in ThICK staining of human brain and mouse whole-brain tissues with different tissue clearing techniques.
