Extended Data Fig. 1: Diagram of example simple and complex structural variants and their aberrant alignment patterns.

From: SVision: a deep learning approach to resolve complex structural variants

Extended Data Fig. 1: Diagram of example simple and complex structural variants and their aberrant alignment patterns.The alternative text for this image may have been generated using AI.

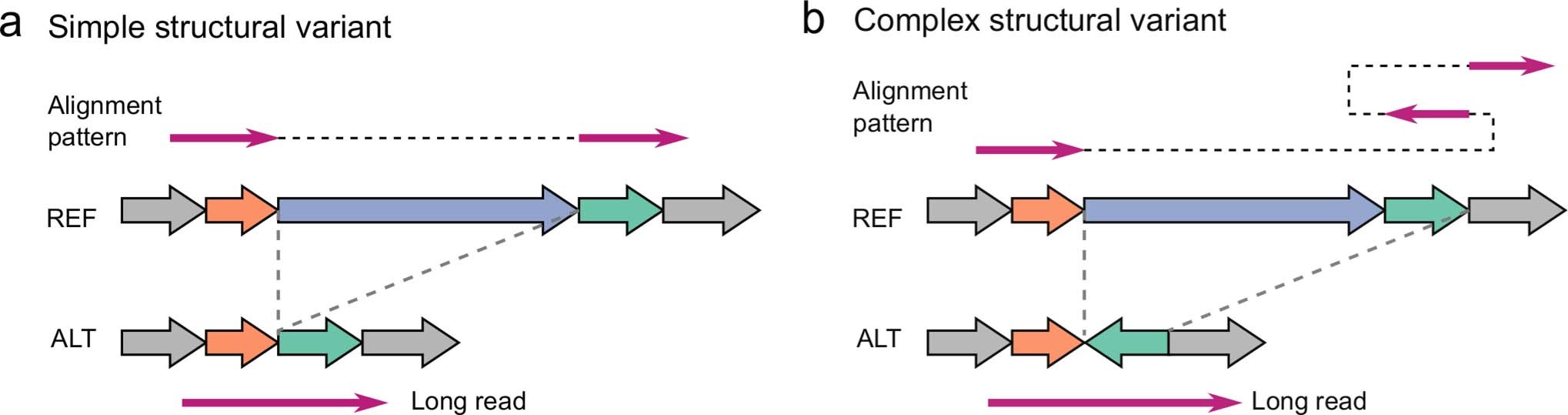

a, The diagram and alignment pattern of a simple deletion. b, The diagram and alignment pattern of a deletion associated with inversion, where the inverted segment occurred at the 3’ flank region of the deletion.
