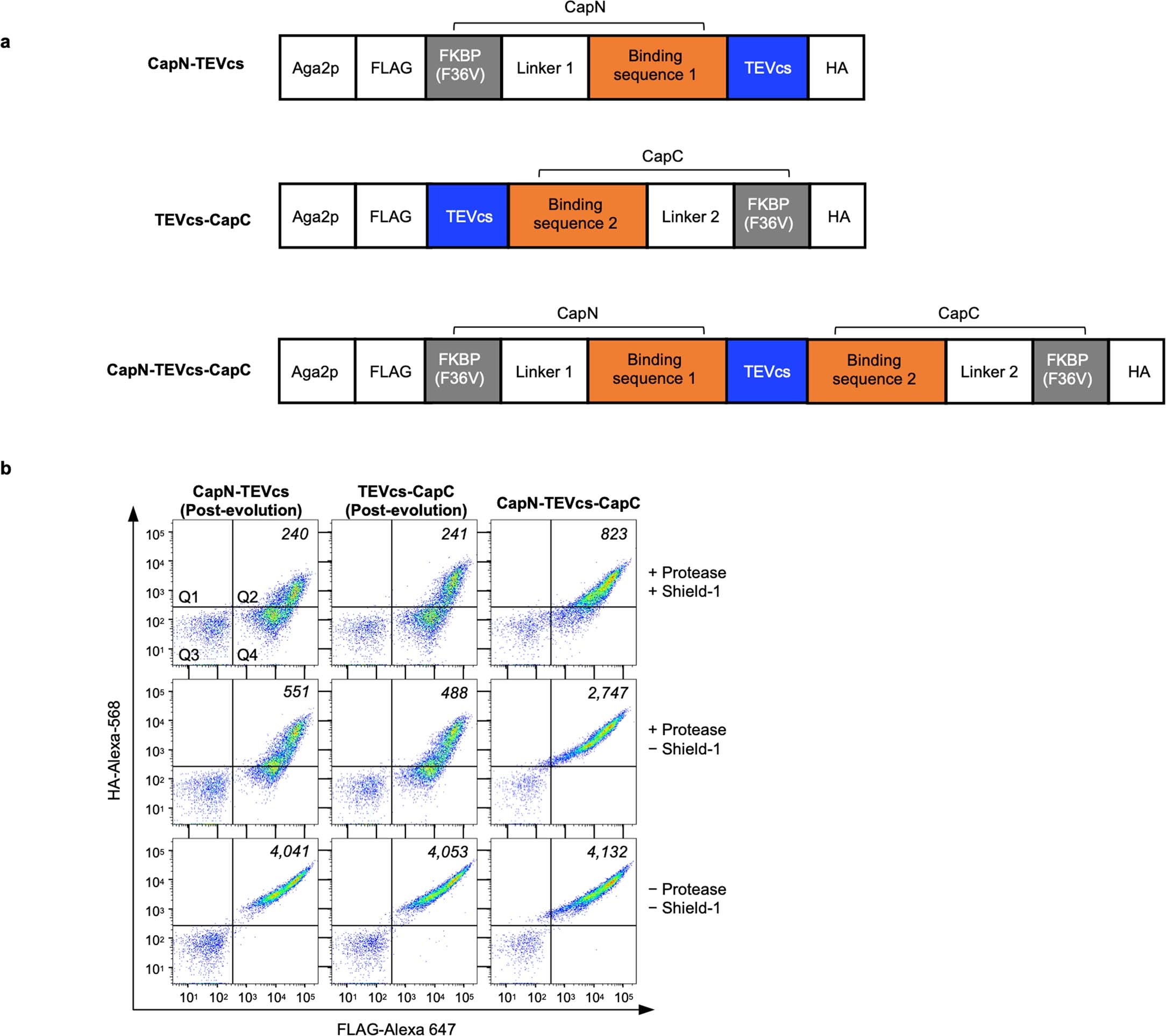

Extended Data Fig. 4: Comparison of single CapN, single CapC, and tandem CAPs in caging TEVcs.
From: A general method for chemogenetic control of peptide function
a, Scheme of the three constructs tested. CapN-TEVcs-CapC is the combined use of both post-evolution CAPs. b, FACS plots of the three constructs shown in a. Values are median biotin intensity of FLAG-positive cells (Q2 + Q4). This experiment used a stronger TEV protease condition than main Figs. 1e and 1f. See method section for details. Protease cleavage (‘+ shield-1’ or ‘− shield-1’) is defined as the difference of the median HA signal between the + protease and – protease conditions. The dynamic ranges are calculated by the ratio of protease cleavage of the ‘+ shield-1’ and ‘− shield-1’ conditions. This experiment was performed once.
