Extended Data Fig. 7: Performance of FD-DeepLoc on 3D astigmatism imaging of mitochondria in a large FOV.
From: Field-dependent deep learning enables high-throughput whole-cell 3D super-resolution imaging

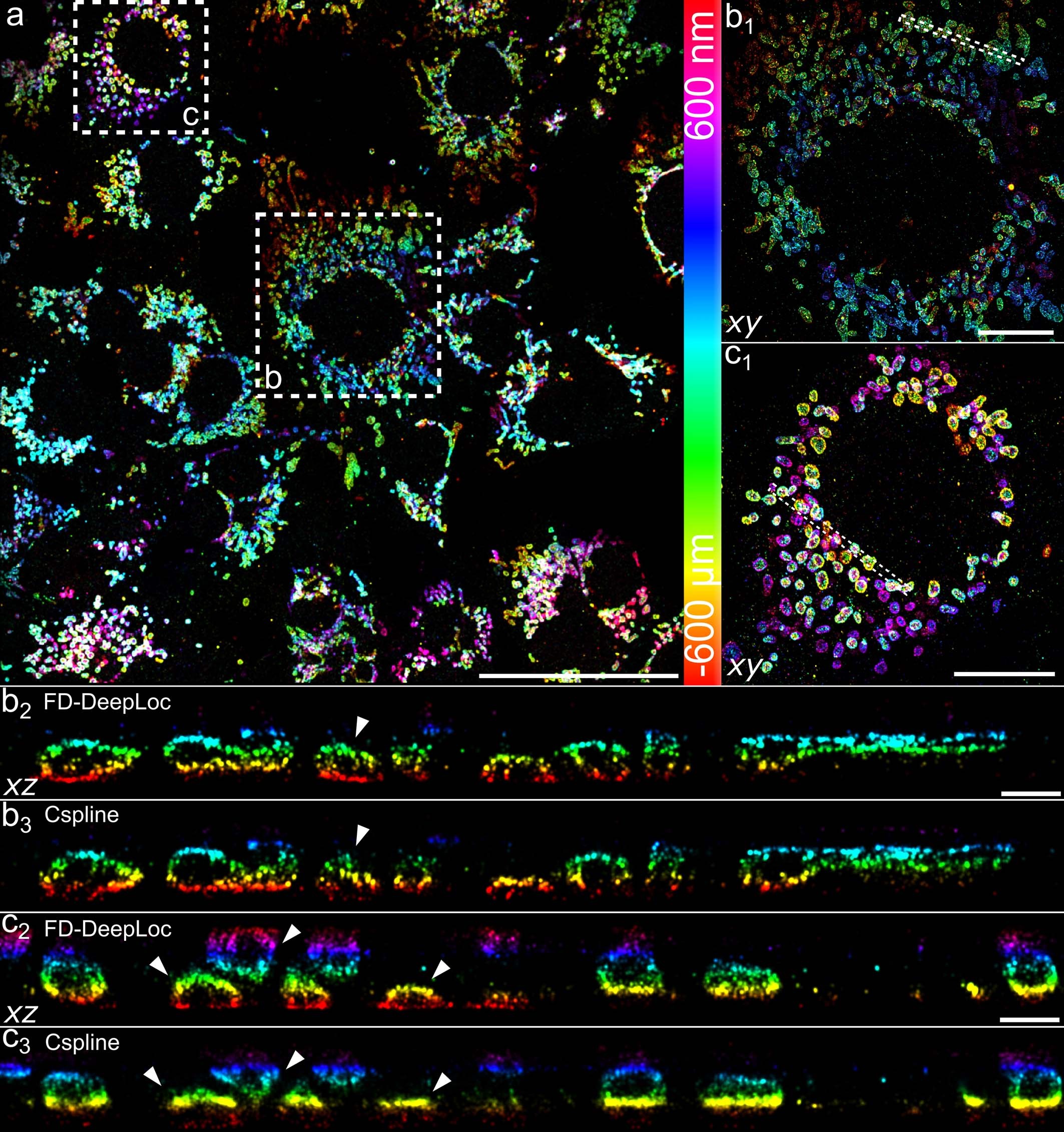

a, Overview of the panoramic 3D super-resolution image of immunolabeled TOM 20 in mitochondria. b1, c1, Zoomed images of the center and marginal areas as indicated by the dashed boxes b, c in a. b2, b3, Side-view cross-section of the region bounded by the dashed lines in b1 reconstructed by FD-DeepLoc and Cspline, separately. c2, c3 the same as b2, b3, but for the region bounded by the dashed lines in c1. Representative results are shown from 2 experiments. Scale bars, 50 μm (a), 10 μm (b1, c1) and 1 μm (b2, c2).
